KEYENCE GL-S series (Resolution 20mm) Light Curtains Replacement

KEYENCE GL-S series (Resolution 20mm) Light Curtains Replacement
KEYENCE GL-S series (Resolution 20mm) Light Curtains ReplacementKEYENCE GL-S series (Resolution 20mm) Light Curtains ReplacementKEYENCE GL-S series (Resolution 20mm) Light Curtains ReplacementKEYENCE GL-S series (Resolution 20mm) Light Curtains Replacement

KEYENCE GL-S series (Resolution 20mm) Light Curtains Replacement

CategoriesKEYENCE GL-S Safety Light Curtain Replacement
ModelGL-S series | GL-S08SH,GL-S12SH,GL-S16SH,GL-S20SH,GL-S24SH,GL-S28SH,GL-S32SH,GL-S36SH,GL-S40SH
Scanning range:0.1-2 m
Protective field height:140mm~780mm
2 safety outputs(OSSD):2 PNP
Response time:7-13ms
Connection type:M12
Safety level:PLe4
Update TimeDec 11,2023
Detail Information
Replcement Models

QBT08/20-140 2BA
QBT12/20-220 2BA
QBT16/20-300 2BA
QBT20/20-380 2BA
QBT24/20-460 2BA
QBT28/20-540 2BA
QBT32/20-620 2BA
QBT36/20-700 2BA
QBT40/20-780 2BA
Technical Parameters
Beam spacing
Protected altitude

Scanning range

0.1-2 m
Response time
6.6-8.7 ms
Output method
2  PNP
Reliability and durability
 IP65 IP67
Housing cross-section
30mm × 15mm
15mm × 30 mm
Safety  Certificate
PL e4
TÜV CE, China GB certificate, ISO Certificate  UL- FCC,TYPE 4
KEYENCE | GL-S series (Resolution 20mm)  Curtain Sensor Replacement
DADISICK Supply Replacement
QBT08/20-140 2BA  /  QBT12/20-220 2BA  /  QBT16/20-300 2BA
QBT20/20-380 2BA  /  QBT24/20-460 2BA  /  QBT28/20-540 2BA
QBT32/20-620 2BA  /  QBT36/20-700 2BA  /  QBT40/20-780 2BA

DADISICK Supply Safety light curtains sensor replacement for KEYENCE GL-S series (Resolution 20mm), 2 years warranty, support urgent global shipment

Users Are Also Interested In:
OX-W5|The safety door switch with locking function|DADISICK
Safety door switch providing robust security and reliable access control. Protecting your facility and employees.
DT11 series|PVC safety Mats|DADISICK
Safety carpet is a technology that monitors the pressure distribution on the carpet through pressure sensing.
LDS2030B5-5S Series|Laser Scanning Radar|DADISICK
Sensing range 20m, A technique that uses a laser beam to measure distance and create detailed maps of objects and environments.
safety relay Ter-A
safety relay for Dadisick Safety Light Curtains
About our company
DADISICK has been focusing on technology research and development, product innovation and application examples for 18 years, providing support to customers with rich on-site manufacturing and automation knowledge, and has been committed to the continuous innovation and product extension of the comp any to prevent stamping accidents in production.

We have a wide range of products. In addition to dadisick's own 2000+ products, there are also a wide variety of brand replacement products to meet your individual needs. Our sales engineers are ready to provide full support at every level of the business, from The design and research phase to model selection, line operation with on-site instruction and after product adoption.

*Quick shipment to replace complete safety sensor
*DADISICK offers multi-brand alternatives with short lead times and consistent performance.
*Please use the website positioning search box to enter "brand + model" to find the relevant product series.
Safety light curtain QBT series  accessories for QBZ-01 Top and bottom cross screws
180 swivel brackets allow the 180° rotation of the light curtain around its longitudinal axis, and ajuste its position.
safety relay
safety relay for Dadisick Safety Light Curtains
safety relay LS-A series
safety relay for Dadisick Safety Light Curtains
Controller QET
Controller QET for Dadisick Safety Light Curtains

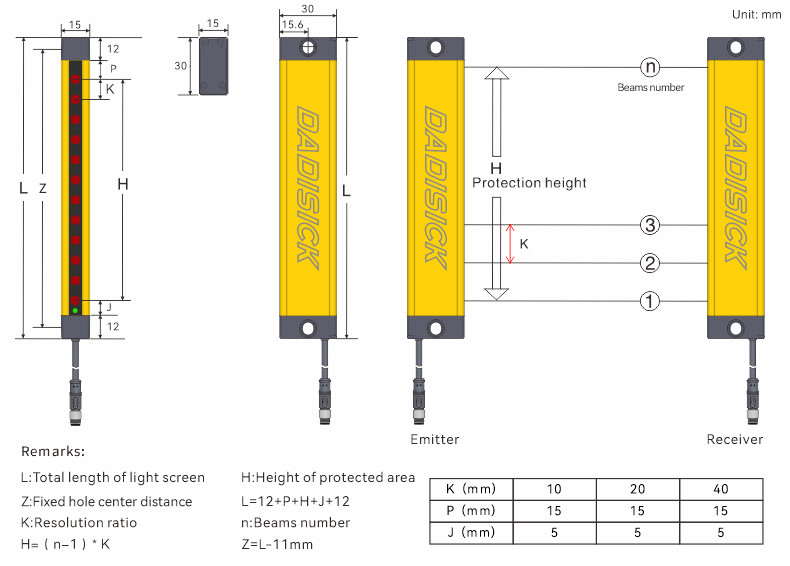

DIMENSIONED DRAWINGS
Light Beam Curtain Cable Description
signal output selection (actual output of transistor working normally)
NPN output wiring diagram
PNP Output Wiring Diagram

QBT08/20-140 2BA-3D-STEP

QBT12/20-220 2BA-3D-STEP

QBT16/20-300 2BA-3D-STEP

QBT20/20-380 2BA-3D-STEP

QBT24/20-460 2BA-3D-STEP

QBT28/20-540 2BA-3D-STEP

QBT32/20-620 2BA-3D-STEP

QBT36/20-700 2BA-3D-STEP

QBT40/20-780 2BA-3D-STEP

Name: TÜV

Size: 1.61MB

Name: ISO Quality System Certification

 size:  4.01MB

Name: ROHS Certification

Size:  688KB

Name: Brand trademark

Size: 1.15MB

Name: CE Certification

Size:  996kb

Name: UL-FCC

 size:  116MB

Name: Corporate Social Credit Code      Size: 6.18 MB

Name: Certificate TYPE 4

Size:  996KB
