What Is a Safety Interlock Switch and How Does It Work?
A safety interlock switch is a critical device used in industrial settings to ensure the safety of personnel and machinery. It works by monitoring the position of a guard or door and ensuring that a machine can only operate when the guard is properly closed and secured. When the guard is opened, the safety interlock switch activates and stops the machine's operation. This mechanism is vital for preventing accidents and protecting workers from hazardous machinery.
Our company specializes in providing high-quality safety interlock switches and solutions. We are committed to enhancing industrial safety through innovative and reliable products. Our safety interlock switches are designed to meet the highest standards of performance and durability, ensuring that your equipment and personnel remain protected at all times. In this article, we will delve into the details of what a safety interlock switch is and how it works.
A safety interlock switch typically consists of two main components: a sensor and an actuator. The sensor is mounted on the machine, while the actuator is attached to the movable guard or door. When the guard is closed, the actuator engages with the sensor, completing the electrical circuit and allowing the machine to operate. If the guard is opened, the actuator disengages from the sensor, breaking the circuit and triggering a stop signal to the machine.
This process is essential for preventing accidental activation of machinery when access to hazardous areas is required. The safety interlock switch acts as a barrier between the operator and the machine, ensuring that the machine can only run when it is safe to do so.
Types of Safety Interlock Switches

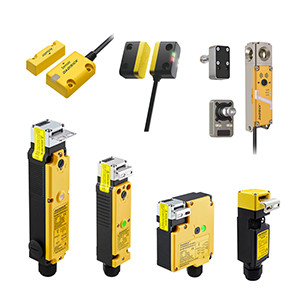

There are several types of safety interlock switches available, each designed for specific applications and environments:
Non-contact safety interlock switches, use a sensor head to detect the distance between an actuator mounted on the door and the sensor head mounted on the machine. This type of switch does not require physical contact between the actuator and the sensor head, making it less susceptible to wear and tear. They are classified as type 3 and type 4 in ISO 14119 (JIS B 9710): Safety of machinery — Interlocking devices associated with guards — Principles for design and selection.
Reed Switch Type: Consists of a sensor head with multiple reed switches and a paired actuator with multiple magnets. When the door is closed, the magnetic field near the sensor head becomes stronger, activating the reed switch contacts. When the door is opened, the magnetic field weakens, and the reed switch contacts return to their original state.
RFID Type: Uses an RFID reader in the sensor head to read ID data from the actuator. If the ID matches the stored data, the door is considered closed.
Mechanical Safety Interlock Switches
Mechanical safety interlock switches rely on physical contact between the actuator and the sensor. They are often used in applications where a higher level of security is required. These switches can be equipped with various features such as anti-tampering functions and fault detection capabilities.
Spring Lock Type: Utilizes a spring mechanism to lock the door when the machine is in operation. The door can only be opened after the machine has come to a complete stop, ensuring the safety of personnel.
Solenoid Lock Type: Employs an electromagnetic solenoid to lock the door. The solenoid is energized to keep the door locked during machine operation. When the machine stops, the solenoid can be de-energized to allow the door to be opened.
Safety interlock switches are widely used in various industrial applications to enhance safety and prevent accidents. Some common applications include:
Machine Tools: Protecting operators from moving parts and ensuring that machines only operate when guards are properly closed.
Automated Production Lines: Preventing unauthorized access and ensuring that production lines stop when access is required.
Hazardous Testing Areas: Securing testing environments and preventing accidental activation of equipment.
Isolation Zones: Restricting access to specific areas and ensuring that equipment within these zones is only operated under safe conditions.
Benefits of Using Safety Interlock Switches
Enhanced Safety: The primary benefit of safety interlock switches is the increased safety they provide to personnel and equipment. By preventing accidental activation of machinery, they significantly reduce the risk of accidents and injuries.
Improved Reliability: High-quality safety interlock switches are designed to withstand harsh industrial environments and provide reliable performance over long periods. Our safety interlock switches undergo rigorous testing to ensure they meet the highest standards of durability and reliability.
Compliance with Safety Standards: Safety interlock switches help industries comply with various safety regulations and standards. Our products are certified to meet international standards such as ISO13849-1 and IEC/EN60947-5-3, ensuring that your operations adhere to the required safety guidelines.
Cost-Effective Solutions: By preventing accidents and equipment damage, safety interlock switches offer a cost-effective solution for maintaining safe and efficient industrial operations.
Our Company's Safety Interlock Switch Solutions
At our company, we pride ourselves on providing superior safety interlock switch solutions tailored to meet the unique needs of our customers. Our product range includes a variety of safety interlock switches designed for different applications and environments.

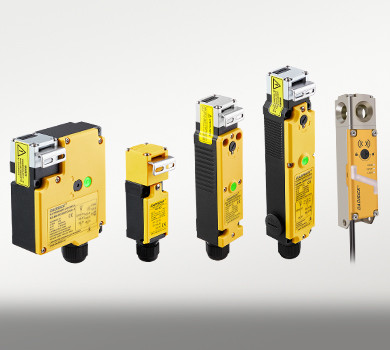

OX-D3 Safety Lock Switch: A versatile safety lock switch suitable for monitoring safety doors and windows. It features a robust construction and reliable performance.

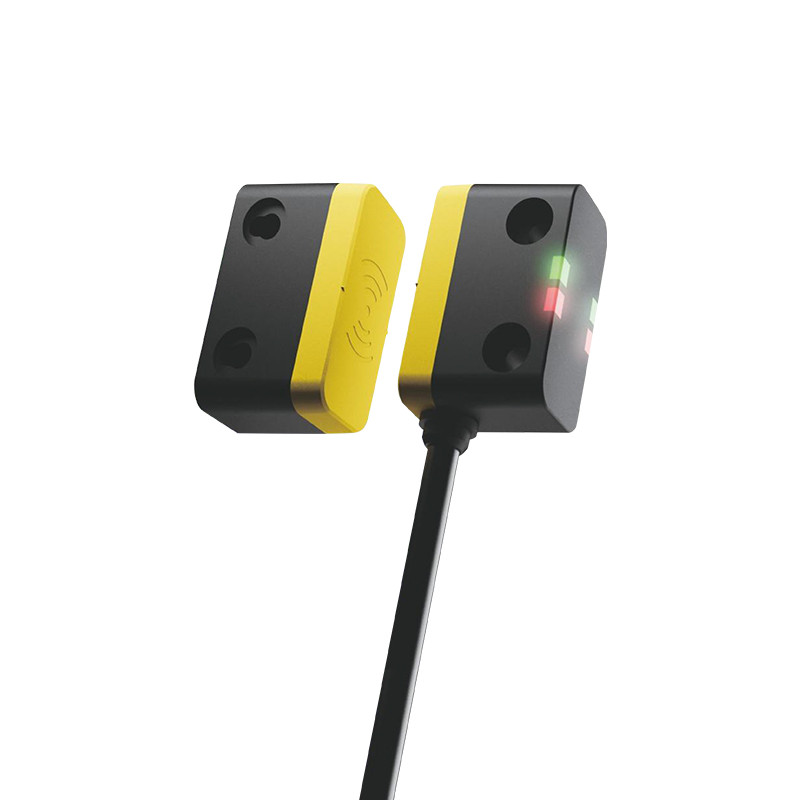

OX-R1 Non-contact Safety Door Switch: Utilizing RFID technology, this non-contact safety door switch offers enhanced security and anti-tampering capabilities. It is available in various configurations to suit different requirements.
OX-W3 Safety Interlock Switches: Equipped with a locking function, these safety interlock switches provide robust security and reliable access control for safety doors and windows.
Our safety interlock switches are manufactured using high-quality materials and advanced technology, ensuring a long service life and minimal maintenance. We also offer customization services to meet specific customer requirements, including different input types, output configurations, and communication protocols.
Installation and Maintenance of Safety Interlock Switches
Proper installation and maintenance are crucial for ensuring the optimal performance and longevity of safety interlock switches. Here are some key considerations:
Installation
Mounting: Ensure that the safety interlock switch is mounted securely and in the correct position to effectively monitor the guard or door.
Wiring: Follow the manufacturer's instructions for wiring the switch to the machine's control system. Use appropriate wiring practices to prevent electrical issues.
Alignment: Proper alignment of the actuator and sensor is essential for the correct functioning of the switch. Any misalignment can lead to malfunctions.
Maintenance
Regular Inspection: Conduct regular inspections of the safety interlock switch to check for any signs of wear, damage, or malfunction.
Cleaning: Keep the switch and its components clean to prevent debris from interfering with its operation. In environments with high levels of dust or moisture, ensure that the switch is properly sealed and protected.
Testing: Periodically test the safety interlock switch to verify that it is functioning correctly. This includes checking the response time, actuation force, and overall reliability of the switch.
Conclusion
Safety interlock switches play a vital role in ensuring the safety of personnel and machinery in industrial settings. By understanding what a safety interlock switch is and how it works, you can make informed decisions about implementing these devices in your operations. Our company is dedicated to providing reliable and high-quality safety interlock switches that meet the diverse needs of our customers. We strive to enhance industrial safety and compliance with our innovative solutions and exceptional customer support.
If you are looking for reliable and efficient safety interlock switches for your industrial applications, our company is your trusted partner. Visit our website to explore our comprehensive product range and learn more about how our safety interlock switches can benefit your operations.
Related Hot-sale Safety Interlock Switch
Used for monitoring places such as safety doors and windows.
Used for monitoring places such as safety doors and windows.
Safety door switch providing robust security and reliable access control.
Protecting your facility and employees.
Used for monitoring places such as safety doors and windows.

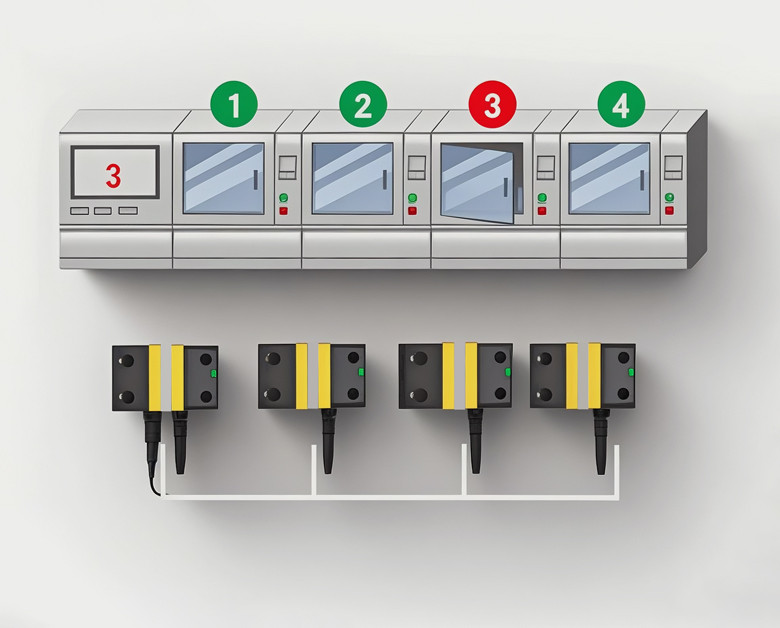

Cascade type: Support cascade
