DADISICK Proximity Sensors Download Center

Proximity Sensors Introduction

DADISICK's proximity switch sensor is an electronic device that can detect the presence or position of an object without physical contact. It is low-cost and highly resistant to interference. According to different principles, it is divided into inductive (metal only) and capacitive (metal/non-metal). Non-contact detection can detect the presence or position of the target object without direct contact with it, avoiding mechanical wear, long life, and suitable for high-frequency operation scenarios. It is widely used in object presence detection, such as detecting the presence, absence or misalignment of parts on the assembly line; counting the number of objects passing through the sensor, or monitoring the speed of rotating equipment.
Capacitive proximity sensor detecting package presence
Capacitive proximity sensor detecting package presence
Detecting metal object cutting
Detecting metal object cutting
Detecting the origin and positioning of rotating mechanisms
Detecting the origin and positioning of rotating mechanisms

Capacitive Proximity Sensor Download Our Relevant Files

DADISICK capacitive proximity sensor is a non-contact detection device based on the principle of capacitance change. Its multi-material detection capability can detect metals, non-metals (such as plastics, wood, glass, liquids, particles, etc.) and transparent objects (such as glass bottles, films), provide digital signals (NPN/PNP) or analog signals (such as 0-10V), and are compatible with control systems such as PLC and single-chip microcomputers to improve system reliability and automation. It is suitable for object presence detection, position or distance detection, and liquid level monitoring in complex environments.
DADISICK Capacitive Type Proximity Sensors

DADISICK Capacitive Type Proximity Sensors

Detection range: 0.1-1mm; 0.1-2mm; 0.1-4mm; 1-3mm; 1-6mm; 1-8mm; 2-8mm; 2-15mm; 2-16mm; 2-20mm; 2-25mm; 2-30mm; 2-35mm
Data Sheet
DADISICK High&low Temperature Resistance Series Capacitive Proximity Sensors

DADISICK High&low Temperature Resistance Series Capacitive Proximity Sensors

Detection range:
0.1-1mm; 0.1-2mm; 1-3mm; 1-6mm; 2-8mm; 2-15mm; 2-20mm; 2-30mm
Data Sheet

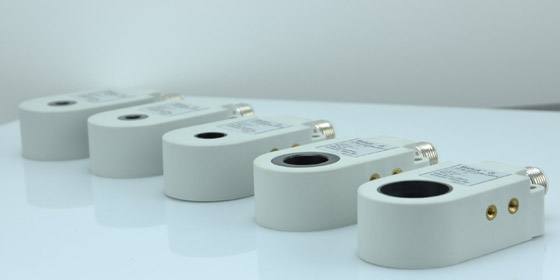

DADISICK Ring Shape Series Capacitive Proximity Sensors

DADISICK Ring Shape Series Capacitive Proximity Sensors

Inner hole diameter:
3mm;  4mm;  5mm;  6mm;  8mm;  9mm;  10mm;  12mm;  14mm;  15mm;  16mm;  17mm;  21mm;  22mm;  25mm
Data Sheet
DADISICK Square Series Capacitive Proximity Sensors

DADISICK Square Series Capacitive Proximity Sensors

Detection range: 2mm; 4mm; 5mm; 8mm; 15mm; 20mm; 30mm; 1-4mm; 1-6mm; 1-8mm; 1-10mm; 2-10mm; 2-15mm; 2-20mm; 2-30mm; 2-40mm; 2-60mm
Data Sheet

Inductive Proximity Sensor Download Our Relevant Files

The inductive proximity sensor (proximity switch) is a non-contact detection device based on the principle of electromagnetic induction. It is specially used for the detection of metal objects. It has no response to non-metals (plastics, wood, etc.). It has the characteristics of high reliability and strong anti-interference ability. It provides digital signal output (NPN/PNP, normally open/normally closed contacts) and can be directly connected to PLC or controller. It is widely used to accurately detect the approach or distance of metal objects, count metal parts on the assembly line, or monitor the speed of rotating equipment (such as motors, gears), and high-speed assembly line sorting.
DADISICK Ultra Mini Series Proximity Sensors

DADISICK Ultra Mini Series Inductive Proximity Sensors

Detection range:
0.6mm; 0.8mm; 1mm; 1.5mm
Data Sheet
DADISICK φ6.5 Series inductive Proximity Sensors

DADISICK φ6.5 Series Inductive Proximity Sensors

Detection range:
1mm; 2mm; 3mm; 4mm; 6mm; 8mm
Data Sheet
DADISICK M8 Series Inductive Proximity Sensors

DADISICK M8 Series Inductive Proximity Sensors

Detection range:
1mm; 2mm; 3mm; 4mm; 6mm; 8mm
Data Sheet
DADISICK M12 Series Inductive Proximity Sensors

DADISICK M12 Series Inductive Proximity Sensors

Detection range:
2mm; 4mm; 6mm; 8mm; 10mm; 12mm
Data Sheet
DADISICK M18 Series Inductive Proximity Sensors

DADISICK M18 Series Inductive Proximity Sensors

Detection range: 5mm; 8mm; 12mm; 15mm; 16mm; 20mm; 23mm
Data Sheet
DADISICK M30 Series Inductive Proximity Sensors

DADISICK M30 Series Inductive Proximity Sensors

Detection range: 10mm; 15mm; 16mm; 22mm; 25mm; 40mm; 50mm
Data Sheet
DADISICK Square Series Inductive Proximity Sensors

DADISICK Square Series Inductive Proximity Sensors

Detection range:1mm; 2mm; 2.5mm; 3mm; 4mm; 5mm; 6mm; 8mm; 12mm; 15mm; 20mm; 30mm; 40mm; 50mm; 60mm; 80mm
Data Sheet
DADISICK Explosion-proof Series Inductive Proximity Sensors

DADISICK Explosion-proof Series Inductive Proximity Sensors

Detection range: 0.8mm; 1mm; 2mm; 3mm; 4mm; 5mm; 8mm; 10mm; 15mm; 16mm; 25mm; 30mm
Data Sheet
DADISICK Weld and magnetic immune Inductive Proximity Sensors

DADISICK Weld and magnetic immune Inductive Proximity Sensors

Detection range: 5mm; 8mm; 12mm; 15mm; 16mm; 20mm; 23mm
1mm; 2mm; 4mm; 5mm; 8mm; 10mm; 15mm; 16mm; 25mm
Data Sheet
DADISICK Ring Shape Series Inductive Proximity Sensors

DADISICK Ring Shape Series Inductive Proximity Sensors

Inner hole diameter:
3mm;  4mm;  5mm;  6mm;  8mm;  9mm;  10mm;  12mm;  14mm;  15mm;  16mm;  17mm;  21mm;  22mm;  25mm;  35mm;  50mm;  75mm;  100mm
Data Sheet
DADISICK AC Type Inductive Proximity Sensors

DADISICK AC Type Inductive Proximity Sensors

Detection range:
2mm; 4mm; 5mm; 8mm; 10mm; 15mm; 16mm; 25mm; 20mm; 30mm
Data Sheet
DADISICK Metal face Series Inductive Proximity Sensors

DADISICK Metal face Series Inductive Proximity Sensors

Detection range:
1mm; 2mm; 3.5mm; 4mm; 5mm; 6mm; 8mm; 10mm; 13mm
Data Sheet
DADISICK Corrosion Resistant Series Inductive Proximity Sensors

DADISICK Corrosion Resistant Series Inductive Proximity Sensors

Detection range:
1mm; 2mm; 4mm; 5mm; 8mm; 10mm; 15mm; 16mm
Data Sheet
DADISICK High&low Temperature Resistance Series Inductive Proximity Sensors

DADISICK High&low Temperature Resistance Series Inductive Proximity Sensors

Detection range:
1mm; 2mm; 4mm; 5mm; 8mm; 10mm; 15mm; 16mm; 25mm
Data Sheet
DADISICK High pressure series Inductive proximity sensor

DADISICK High Pressure Series Inductive Proximity Sensor

Detection range:
0.8mm; 1mm; 1.5mm; 2 3mm
Data Sheet
DADISICK Limit Switch Series Inductive Proximity Sensors

DADISICK Limit Switch Series Inductive Proximity Sensors

Detection range:
1mm; 5mm; 8mm
Data Sheet
DADISICK φ6.5 Series Analog Inductive Proximity Sensors

DADISICK φ6.5 Series Analog Inductive Proximity Sensors

Detection range:
0.1-1.5mm; 0.5-2.5mm; 0.6-3mm;
0.5-4mm; 1-6mm; 2-6mm
Data Sheet
DADISICK M8 Series Analog Inductive Proximity Sensors

DADISICK M8 Series Analog Inductive Proximity Sensors

Detection range:
0.1-1.5mm; 0.5-2.5mm; 0.6-3mm;
0.5-4mm; 1-6mm; 2-6mm
Data Sheet
DADISICK M12 Series Analog Inductive Proximity Sensors

DADISICK M12 Series Analog Inductive Proximity Sensors

Detection range: 0.1-3mm; 0.1-4mm; 0.1-6mm; 0.5-3mm; 0.5-4mm; 0.5-6mm; 3-8mm; 3-10mm; 2.3-8mm; 3-10mm
Data Sheet
DADISICK M18 Series Analog Inductive Proximity Sensors

DADISICK M18 Series Analog Inductive Proximity Sensors

Detection range:
1-4mm; 3-10mm; 4-12mm; 1-7mm; 3-10mm; 1-12mm; 7-20mm
Data Sheet
DADISICK M30 Series Analog Inductive Proximity Sensors

DADISICK M30 Series Analog Inductive Proximity Sensors

Detection range: 2-10mm; 5-10mm; 5-14mm; 5-16mm; 5-22mm; 5-25mm; 7-14mm; 7-22mm; 7-25mm; 17-40mm
Data Sheet
DADISICK Square 40x40mm Series Inductive Analog Proximity Sensors

DADISICK Square 40x40mm Series Inductive Analog Proximity Sensors

Detection range:
5-15mm; 5-20mm; 7-30mm; 7-40mm; 10-30mm; 10-40mm
Data Sheet
