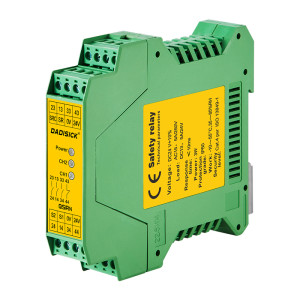

| Categories | Safety Relays |
|---|---|
| Trademark/Brand | DADISICK |
| Model | Ter-AN or Ter-AP |
| Power supply | 24 V DC |
| Relay safety output | 3NO + 1NC |
| Maximum switching capacity | 12 A (Distributed on all safety output contacts) |
| Transistor signal output | <500 mA 24 V DC |
| Contact resistance | <100 mΩ |
| Size | 117 × 100 × 22.5 mm |
| Class of pollution | 4 TYPE |
| Certificate | ISO, CE, UL ,FCC, TUV |
| Update Time | Oct 29,2025 |
|
Safety Relay Product model
|
|||
|
Safety relay series
|

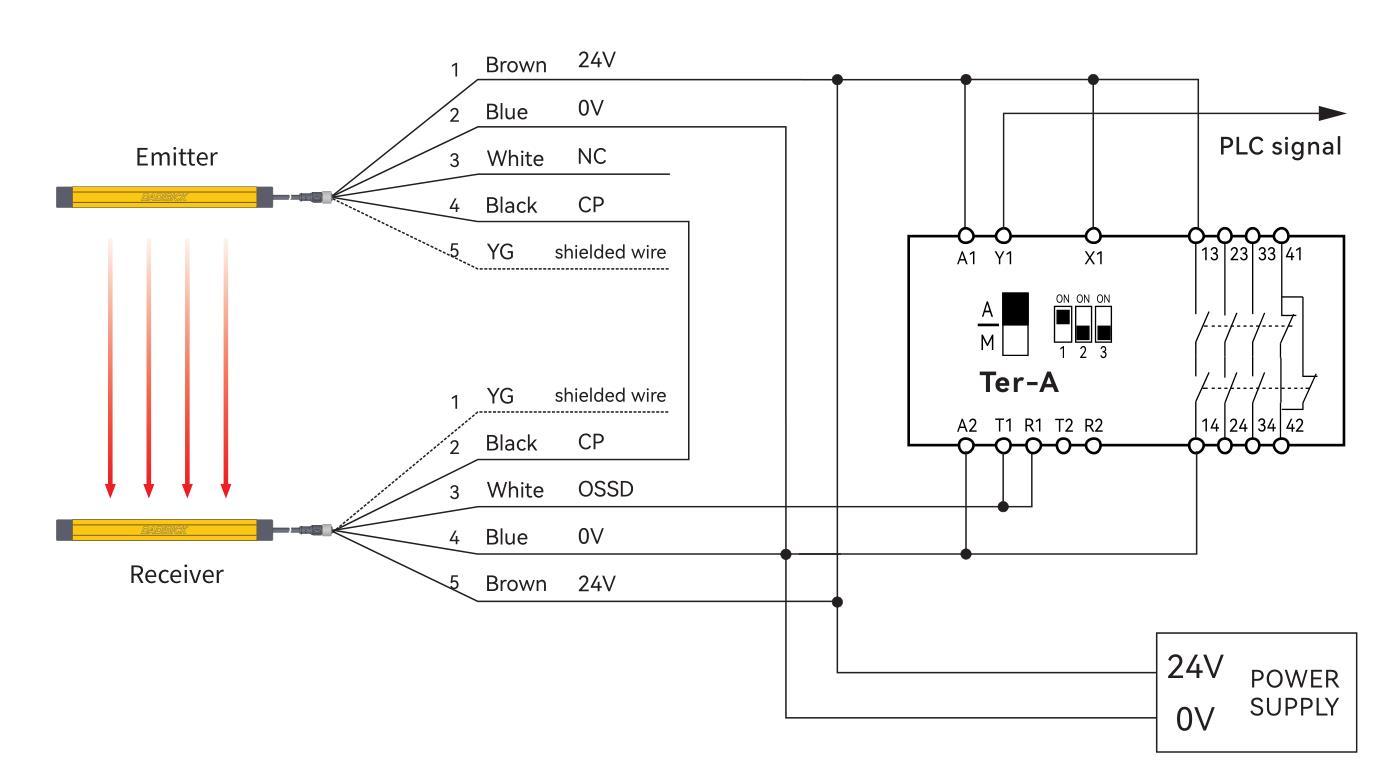

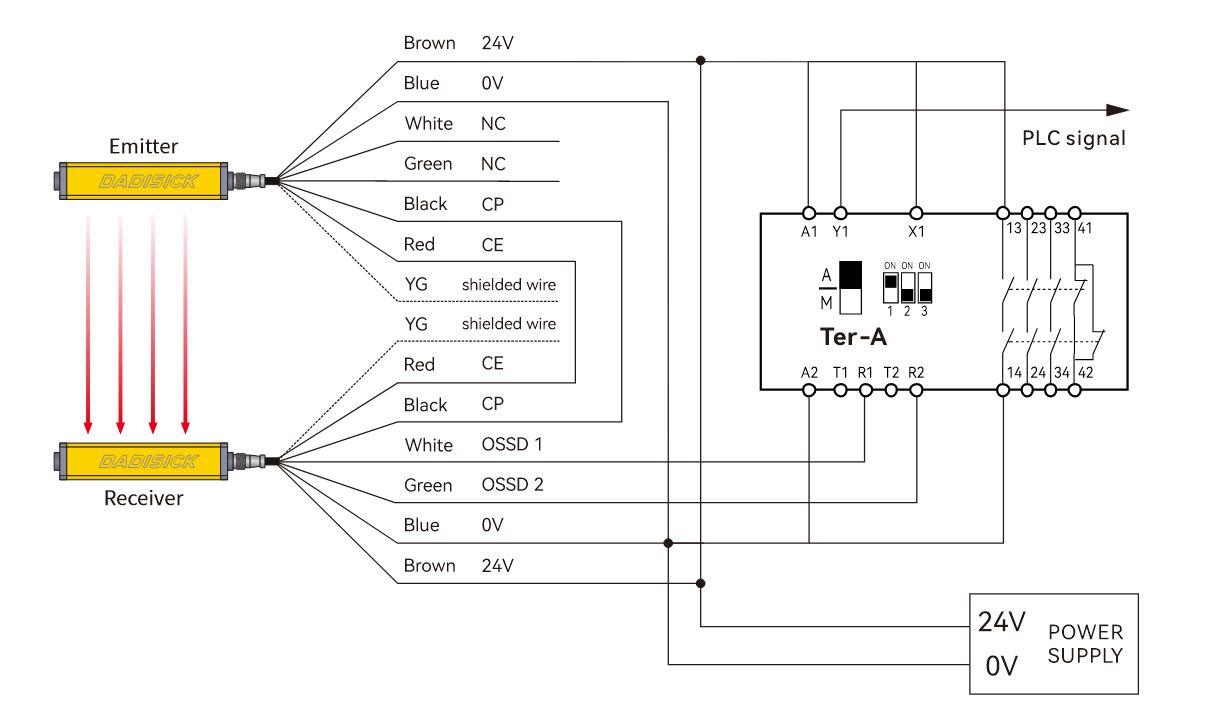

Ter-A
|
||
Output method | NPN | PNP | |
Product model | Ter-AN | Ter-AP | |
|
Output
|
|||||||
|
Power supply
|
24 V DC
|
||||||
|
Tolerance of voltage
|
+10% / -20%
|
||||||
|
Power dissipation
|
2.9 W
|
||||||
|
Output
|
3NO + 1NC
|
||||||
|
Transistor signal output
|
<500 mA 24V DC
|
||||||
|
Relay contact capacity
|
|||
|
AC-1
|
6 A / 250 V AC / 1500 VA
|
||
|
AC-15
|
4 A / 240 V AC
|
||
|
DG-1
|
6 A / 24 V DC / 150 W
|
||
|
DG-13
|
4 A / 24 V DC
|
||
Maximum switching capacity | 12 A (Distributed on all safety output contacts) | ||
Contact resistance | <100 mΩ | ||
Minimum load | 10 mA / 5V | ||
Material of contact | AgSnO2 + 0.2µmAu | ||
|
General parameter
|
|||
|
Output fuse (external)
|
5 A gL/gG
|
||
|
Release response time
|
<30 ms (From input to output)
|
||
|
Check the resistance at the end of the input component(Touch edge/carpet)
|
1 kΩ ~ 10 kΩ
|
||
|
Electrical life
|
80,000 times
|
||
Cass of pollution | 4 TYPE | ||
Operating temperature | -25℃ ~ 85℃ | ||
Operating humidity | 35% - 85% (No ice or condensation） | ||
Impulse withstand voltage | 2.5 kV | ||
Level of protection | Enclosure IP30, terminal IP20, recommended for installation in cabinet or enclosure IP54 | ||
Storage temperature | -40℃ ~ 105℃ | ||
Shell material | Flame retardant PA66 | ||
Size | 117 × 100 × 22.5 mm | ||
