CategoriesLaser Scanning Radar
BrandDADISICK
ModelLDS2030A5-5S Series
Sensing range:0.1m~20m
Scanning frequency:25Hz
Scanning angle range:300°
Light source:Infrared laser (905nm)
Laser safety level:Class 1 ( GB7247.1-2012 , Eye-safe IEC )
Update TimeMar 1,2024
Detail Information
Basic Information

Product number
two-dimensional tof obstacle avoidance laser radar
model
LDS2030A5-5S
LDS2030B5-5S
output
NPN
PNP
Features

illuminant
Infrared laser (905nm)
Laser safety class
Class I (GB 7247.1-2012, Eye safety)
Laser spot outlet aperture
8mm
Laser spot divergence Angle
12.5mrad
Scanning Angle range/resolution
300°
scanning frequency
25Hz
Angle resolution
0.5°
Measuring range
0.1m~20m
10% reflectance range
15m
Self-learning function
Automatic environment scanning, generating area
Outdoor performance
Dirt resistant, sun resistant
Rain, fog and smoke penetrate
support
Technical performance
Measurement error (typical value)
Systematic error
Statistical error (1σ)

 5cm
2cm
Built-in application
Area monitoring
Monitoring mode: point number monitoring/target width monitoring/profile monitoring
Type of monitoring signal: Attention/warning/alarm
Number of area groups: 16, supporting self-learning background tailoring
Number of concurrent working area groups: 16 (max)
Guide the network camera to locate and track the monitoring target
Equipment self-test
Content: Light mask dirt/block/high temperature/low temperature/fog
Output mode: indicator +TCP packet
Device interface
Ethernet
Speed: 10/100 Mbps
Network protocol: TCP/UDP
Function: Equipment configuration/measurement data output/area monitoring signal output
I/O input terminal
Quantity: 4
Type: Level input
High level range: DC 10V-30V
Low level range: DC 0V - 1.2V
Preset functions:
Monitoring area group selection (0x0 ~ 0xF)
Mandatory cancellation/mandatory effect of area monitoring signal, active level: high
Power saving and life extension control, active level: high level
I/O output
Quantity: 4
Type: PNP/NPN switch output
Max switching voltage: DC30V
Startup status: Off
Preset functions:
Device ready/area monitoring signal output, active status: configurable
Pilot lamp
Quantity: 2
Definition: HTR(Operational status indicator: monitoring signal/self-learning)
ERR(Device alarm: Light mask dirty/blocked/thick fog, high and low temperature)
Front panel button
Quantity: 1
Definition: Start background self-learning/Delete background
Mechanical/electronic paramete

Operating voltage
DC 10V – 30V
Power dissipation
3.4W(measuring), 7.6W@DC12V/ 6W@DC24V(heating)
Case protection class
IP67(GB 4208-2008)
Safety protection class
Insulation resistance
1MΩ (GB 16796-2009, 5.4.4)
Electric strength
0.5KV(GB 16796-2009, 5.4.3)
dimension(L ╳ W ╳ H)
50╳50╳76(mm)
Interface cable lengt
1 meter
weight
0.6kg
interface

USB
Micro - USB
Input
GND / NCX 4
Switch output
NPNx3, device working status indication X1
Signal output hold time
100ms~10,000ms (adjustable) typical value 330ms
Response time
Status Indicators
Status Indicator
Status indication 1, area group indication 2
Working environment standard
Electromagnetic Compatibility (EMC)
Electrostatic discharge
6KV(GB/T17626.2-2006, Grade 3)
Fast pulse group
1KV(GB/T17626.4-2008, Grade 2)
Electromagnetic field radiation immunity
GB/T17626.3-2006, Level 2
Surge immunity
GB/T17626.5-2008
Power interface: 1.2/50us, 2KV/1KA(Level 3)
Ethernet interface: 10/700us, 1KV/25A(Level 2)
I/O interface: 1.5/50us, 0.5KV/0.25KA(Level 1)
strike
GB/T 2423.5
Single impact
15g,11ms
Continuous shock
10g,16ms
Vibration
GB/T 2423.10
Frequency range
10Hz – 150Hz
range
5g
humidness
93%,+40℃,2h(GB/T 2423.3)
Operating temperature range
 -25℃ – +50℃
Storage temperature range
 -30℃ – +70℃
Ambient illumination range
0lux – 80,000lux
Rainfall range
≤ 20mm/h
Fog/haze visibility range
≥ 2Km
1: Normal working conditions of regional monitoring function; The typical rainfall reference value is 4mm/h for heavy rain and 10mm/h for heavy rain.
2: normal working conditions of regional monitoring function; The visibility reference value of moderate haze and mist is 3Km, and that of heavy haze is 1Km

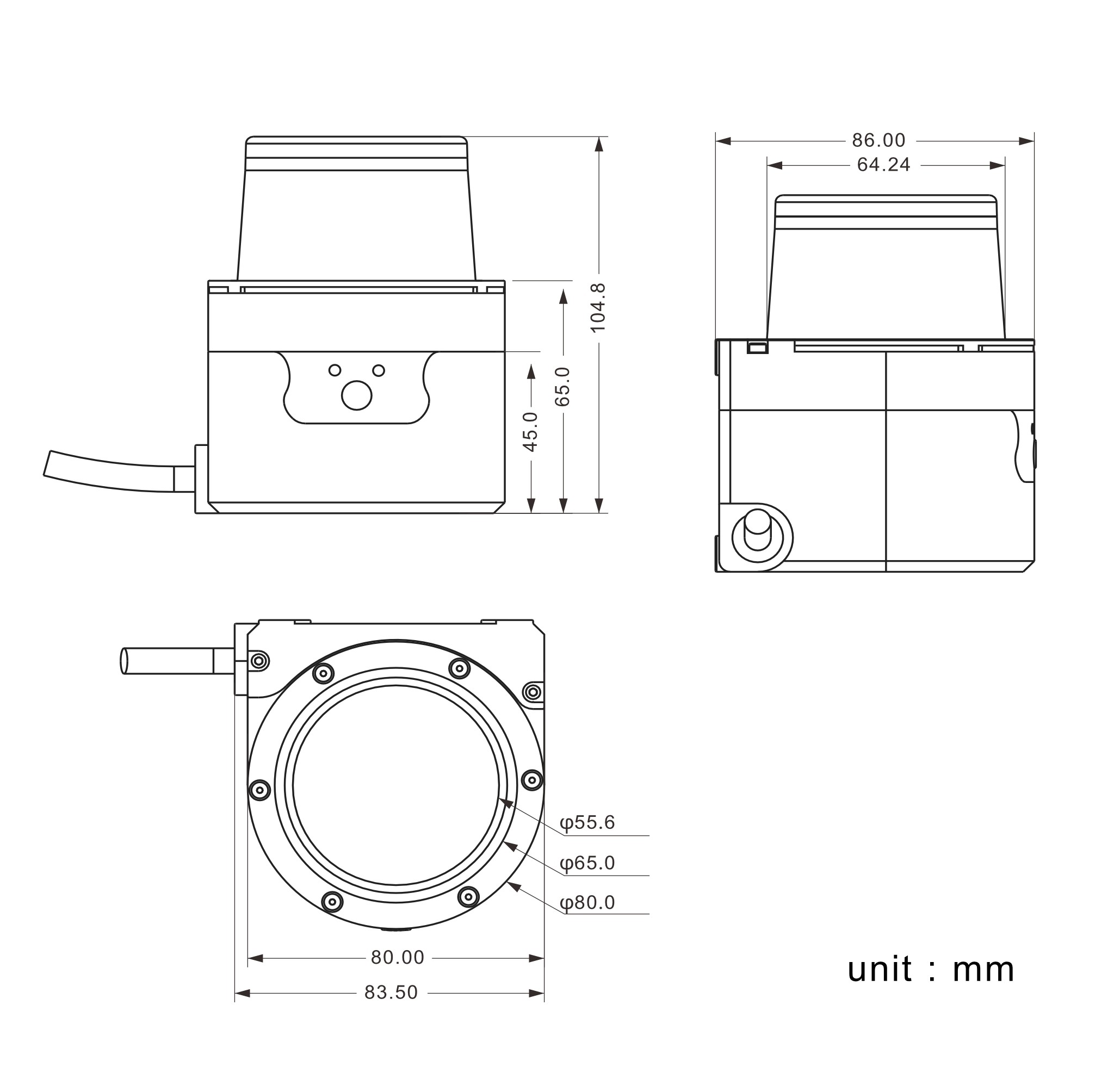

DIMENSION
