| Categories | Square Capacitive Proximity Sensor |
|---|---|
| Brand | DADISICK |
| Model | Square Capacitive Proximity Sensor | CE18 Pre-wired Shielded | CE18-06NO-ZAA-3A-F, CE18-06NC-ZAA-3A-F, CE18-06PO-ZAA-3A-F, CE18-06PC-ZAA-3A-F |
| Size: | Square 30x18x10mm |
| Detection range: | 1-6mm Adjustable |
| Case material: | PTFE |
| Connection type: | 2 Meter Cable |
| Output method: | NPN NO/NC, PNP NO/NC |
| Degree of protection: | IP67 |
| Operating temperature: | -25°C~+70°C (248~343K) |
| Download |  |
| Update Time | Jul 30,2025 |
|

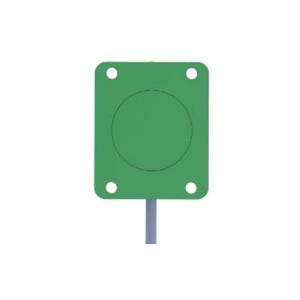

Square Capacitive Proximity Sensor Square Type 30x18x10mm Pre-wired Shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CE18-06NO-ZAA-3A-F | NPN,NO | 1-6mm Adjustable | 100Hz | 1.5ms | 2 Meter Cable | 200mA | Shielded | 10-30VDC | PTFE | |
CE18-06NC-ZAA-3A-F | NPN,NC | |||||||||
CE18-06PO-ZAA-3A-F | PNP,NO | |||||||||
CE18-06PC-ZAA-3A-F | PNP,NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <5%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
