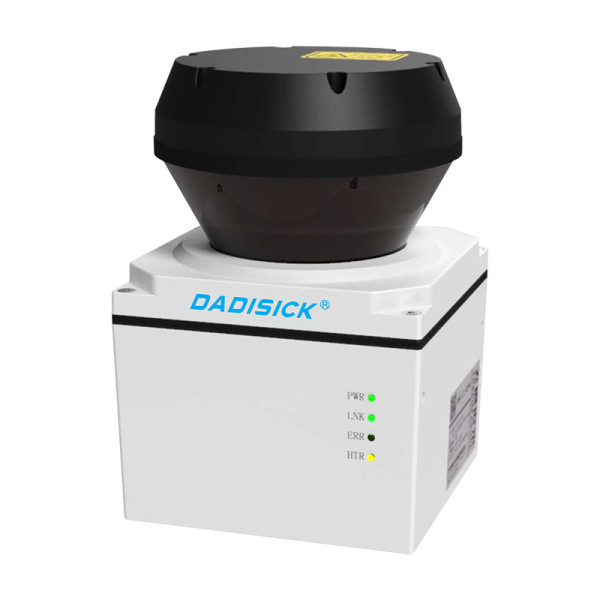

100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK
100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK

100 m Measurement Type Laser Scanning LiDAR｜LiDAR Scanner｜DADISICK

Share
CategoriesLaser Scanning Radar
BrandDADISICK
ModelDK-LD-100L / DK-LD-101L
Sensing range：0.07m – 100m
Scanning frequency：25 Hz
Scanning angle range：270°
Angular resolution0.5° / 0.25°
Light source：Infrared laser (905nm)
Laser safety level：Class I (GB 7247.1-2012, eye-safe)
Contact Now
Favorites
Detail Information
Characteristics
Laser Scanning Radar Basic Information
Product number
Measurement type laser scanning radar
Model
DK-LD-100L / DK-LD-101L
Output
I/O output & Ethernet output
Features
DK-LD-100L
DK-LD-101L
Light source
Infrared laser (905 nm)
Laser safety level
Class I (GB 7247.1-2012, eye-safe)
Laser spot exit diameter
12mm
Laser spot divergence angle
6mrad
Scanning angle range
270°
Scanning frequency
25 Hz
Scanning Angular Resolution
0.5°
0.25°
Sensing range
0.07m – 100m
10% reflectivity range
50m
Outdoor performance
Resistant to dirt and sunlight
Rain, fog, and dust penetration
Supported
Technical Performance
Measurement error (Typical)
● Systematic Error
● Statistical Error (1σ)

2cm(1m~20m) / 4cm(20m~50m)
1cm(1m~20m) / 2cm(20m~50m)
Built-in application
● Area Monitoring
● Monitoring Modes: Point Count Monitoring / Target Width Monitoring / Contour Monitoring
● Monitoring Signal Types: Attention / Warning / Alarm
● Number of Area Groups: 16 groups, supports self-learning background cropping
● Number of Concurrent Working Area Groups: 16 (max)
● Guides network cameras to perform video positioning and tracking of monitored targets.
Device Self-Test
● Content: Dirty/Obstructed light-transmitting cover/High temperature/Low temperature/Dense fog
● Output method: Indicator light + TCP message
Device Interface
Ethernet
Speed: 10/100 Mbps
Network Protocol: TCP / UDP
Functions: Device configuration / Measurement data output / Area monitoring signal output
I/O input
Quantity: 4
Type: Level Input
High Level Range: DC 10V – 30V
Low Level Range: DC 0V – 0.7V
Preset Functions:
Force Cancel/Force Enable Area Monitoring Signal, Valid Level: High Level
Power Saving and Life Extension Control, Valid Level: High Level
I/O output
Quantity: 4 units
Type: PNP/NPN switch output
Maximum switching voltage: DC30V
Power-on status: Off
Preset function: Device ready/area monitoring signal output, valid status: conǁgurable
Indicator light
Quantity: 4
Definitions: PWR (Power Supply)
LNK (Ethernet)
ERR (Equipment Alarm: DiDžy/Obstructed/Dense Fog, High/Low Temperature)
HTR (Normal Measurement)
Mechanical/electronic paramete
Operating voltage
DC 10V – 30V
Power consumption
6W (measurement), 16W@DC12V / 32W@DC24V (heating)
Degree of protection (IP)

Insulation resistance

Electric strength

Dimension (L ╳ W ╳ H)

Interface cable lengt

Weight
DIMENSION
LiDAR dimension
DOCUMENTS & DOWNLOADS
Catalogue

LDS2030B5-5S Data Sheet
LDS2030B5-5S User Manual
3D
LDS2030B5-5S.3D-STP
 Software Installation Package
LDS2030B5-5S(LiDAR__En)
Certificate
CE Certificate of LiDAR Scanner
ECM Certificate of Safety LiDAR Scanner
