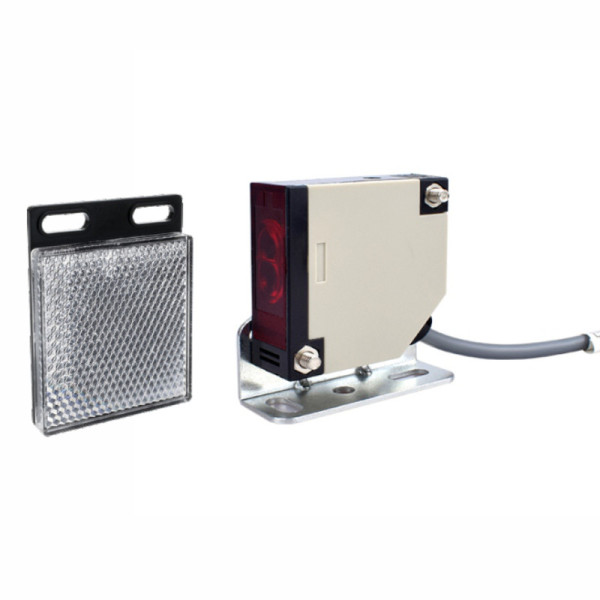

DK-GF18 Retroreflective (Mirror Reflective) Photoelectric Sensor
The DADISICK DK-GF18-400J-ZAA is a retroreflective (mirror reflective) photoelectric sensor engineered for reliable, non-contact object detection in demanding industrial environments. With universal AC/DC power supply (12-240V DC / 24-240V AC) and an adjustable sensing distance of 30-4000 mm, it delivers stable performance for conveyor, packaging, and logistics automation where a separate reflector is impractical or space is limited.
Key Features
- Universal AC/DC power: Wide operating voltage 12-240V DC and 24-240V AC in one device, simplifying stock and panel design.
- Adjustable 30-4000 mm range: Tunable sensing distance with a built-in potentiometer for flexible installation.
- Built-in relay output: Direct load switching up to 3A/30V AC and 1A/220V AC, no extra amplifier required.
- IP55 protection: Dust- and water-jet resistant PBT housing for harsh factory floors.
- CE & RoHS certified: Compliant with international safety and environmental standards.
Technical Specifications
| Parameter | Value |
|---|
| Product model | DK-GF18-400J-ZAA |
| Sensing distance | 30-4000 mm (adjustable) |
| Standard detection object | 200 x 200 mm white cardboard |
| Light source | 940 nm infrared LED |
| Sensing mode | Retroreflective / mirror reflective |
| Casing material | PBT plastic |
| Indicator | Red LED |
| Output type | Relay output (built-in) |
| Operating voltage | 12-240V DC / 24-240V AC |
| No-load current | ≤ 20 mA |
| Maximum load current | 3A/30V AC, 1A/220V AC |
| Voltage drop | < 2.5 V |
| Switching frequency | 10 Hz |
| Response time | 20 ms |
| Switching hysteresis | < 15% (Sr) |
| Repeat accuracy | < 5% (Sr) |
| Temperature drift | < 10% (Sr) |
| Protection level | IP55 |
| Operating temperature | 0 °C to +55 °C |
| Connection | Φ5.0 mm 2 m PVC cable, 3 x 0.33 mm² |
| Weight | Approx. 97 g + 10 g reflector |
| Certification | CE, RoHS |
Working Principle & Applications
The retroreflective (mirror reflective) design uses a single device plus a reflector: the emitter and receiver share the housing, and the beam returns from the reflector. An object is detected when it interrupts the returned light. This makes the DK-GF18 ideal for detecting opaque objects at long range without running cables to both sides of the line. Typical applications include conveyor part counting, packaging machine positioning, pallet and carton presence detection, and logistics sorting systems.
Why Choose DADISICK
- Over a decade of industrial sensor manufacturing experience.
- Strict quality control with CE and RoHS compliance.
- Technical support for selection, wiring, and integration.
- Flexible MOQ and reliable global delivery for B2B buyers.
Dimensional Drawings & Wiring Diagram

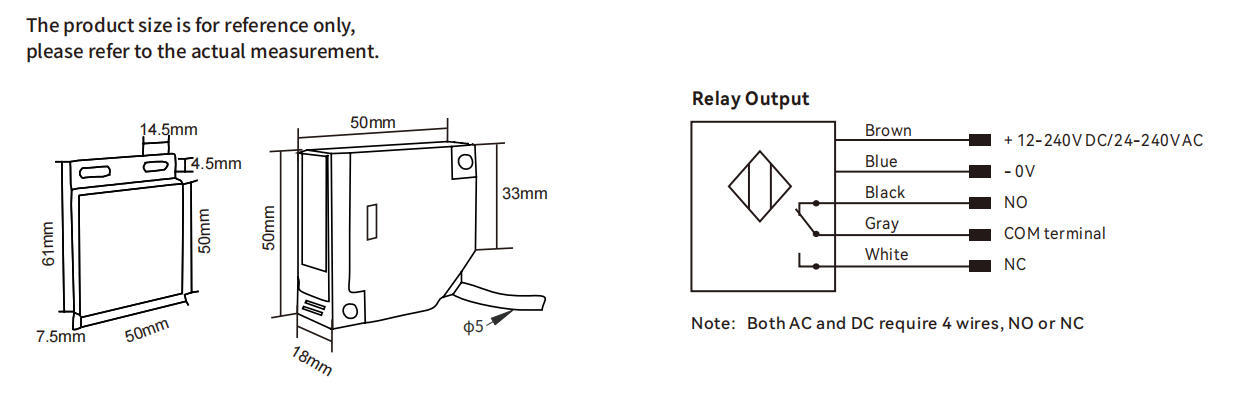

The drawing below shows the DK-GF18 mechanical dimensions and the retroreflective (mirror reflective) wiring diagram, including the 3-wire connection (brown = V+, blue = 0V, black = output), relay output, and the 2 m PVC cable. Always verify the wiring against your controller before energizing the circuit.
