Color Sensors

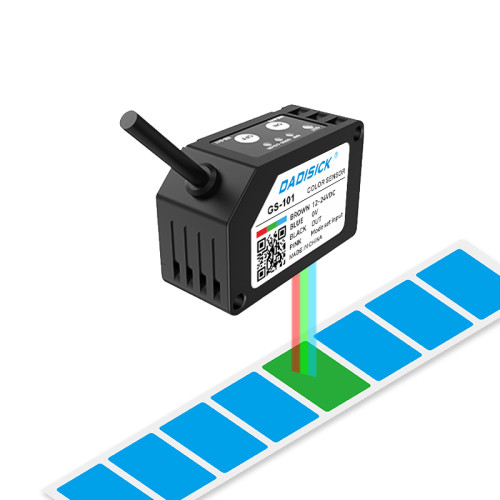

Discover DADISICK's GS-101 Series Color Sensors for reliable color detection. These compact sensors feature a linear light spot of 1.5 * 7mm, with a detection distance of 18 - 28mm and a spot size of about 1.5 * 7mm at 23mm distance. They operate on 24V DC ± 10%, have a response time below 200μs, and offer NPN/PNP open collector transistors. The GS-101 Series includes built-in RGB trichromatic light sources, supporting color and color code modes. They can accurately identify object edges or critical positions of different colors, making them ideal for applications like checking alignment marks and detecting folder labels. With anti-jitter performance and two-point setting for easy installation, these sensors are perfect for various industrial environments.

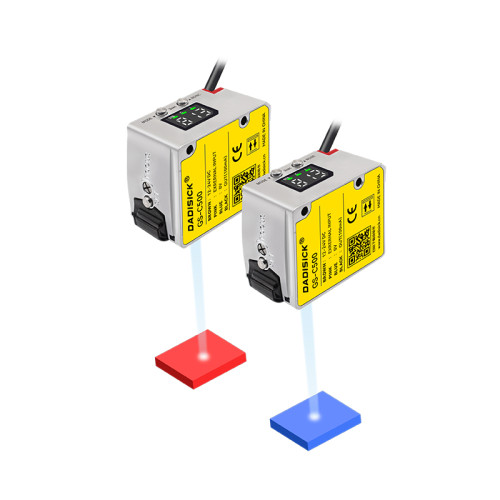

Explore DADISICK's GS-C500 Series color-coded sensors with a white LED light source for stable color difference detection. These long-range sensors feature a detection distance of 50 - 500mm and a minimum light spot diameter of approx. φ3.5mm at 100mm. With a fast response time of 200μs/1ms/10ms/100ms/500ms, they ensure efficient operation. The GS-C500 Series can store 9 colors simultaneously and offers optional IO-LINK communication. Their anti-shake performance and background suppression function make them reliable, while the adjustable spot size and mutual interference reduction allow up to 2 units to work closely. These sensors are ideal for detecting thin sheets, glue presence, and conveyor belt object colors.
