Ultrasonic Sensor

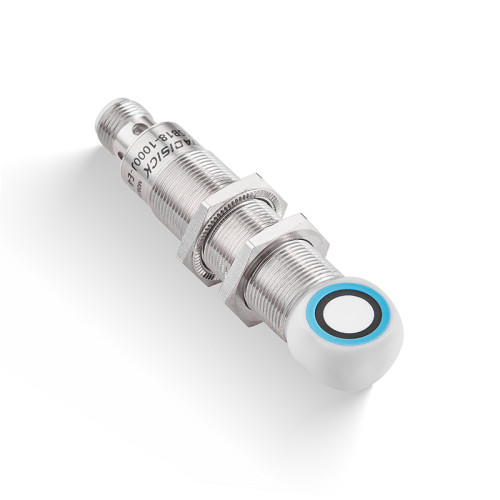

The CSB18 series ultrasonic sensors are highly precise, non-contact detection devices for industrial automation. With detection ranges from 30-300mm up to 60-1000mm, they offer a resolution of 0.1mm and repeatability within ±0.15%. Fast response times (22ms-52ms) and operation in -25°C to +70°C make them reliable for harsh environments. Perfect for liquid level detection and robotic arm positioning, these IP67-protected sensors ensure accurate performance with built-in temperature compensation.

The CSB12 series ultrasonic sensors are compact, precise devices for reliable non-contact detection in industrial settings. They feature detection ranges of 20-120mm to 20-200mm, 0.1mm resolution, and repeatability within ±0.15%. With response times of 18-22ms and an IP67 protection rating, they operate effectively between -25°C and +70°C. Available in switch, analog, RS485, and IO-LINK outputs, these sensors offer built-in temperature compensation and synchronous learning for accurate performance in challenging conditions.

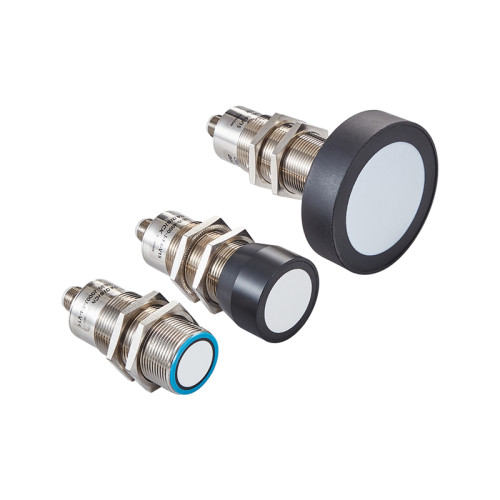

The CSB30 series ultrasonic sensors are advanced non-contact detection devices ideal for industrial automation. They offer detection ranges from 100-2000mm up to 350-6000mm with a resolution of 0.17mm and repeatability within ±0.15%. Designed for harsh environments, they feature IP67 protection and operate between -25°C and +70°C. These sensors support multiple output modes including switch (NO/NC), analog (0-10V/4-20mA), RS485, and IO-LINK, making them versatile for applications like liquid level monitoring, material handling, and robotic arm positioning. With fast response times (82ms-232ms) and built-in temperature compensation, they ensure precise, reliable performance.

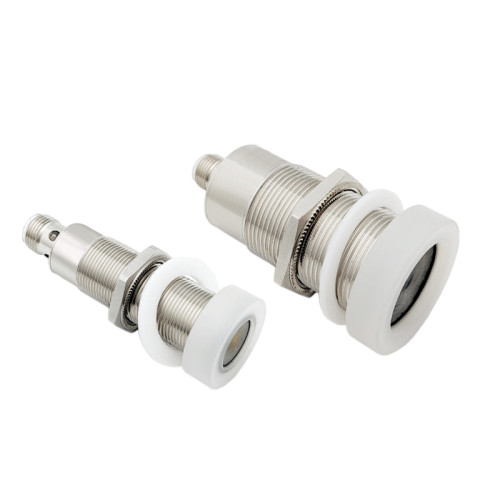

The CSC series corrosion-resistant ultrasonic sensors are designed for demanding industrial environments, offering reliable non-contact detection. They feature a detection range of 60-1000mm to 150-2500mm with a resolution of 0.2-0.5mm. These sensors boast IP67 protection, operate between -25°C and +70°C, and provide multiple output options including analog (0-10V/4-20mA) and RS485 digital output. With fast response times (120ms-160ms) and built-in temperature compensation, they ensure precise measurements for applications like liquid level control and material handling in harsh, corrosive settings.

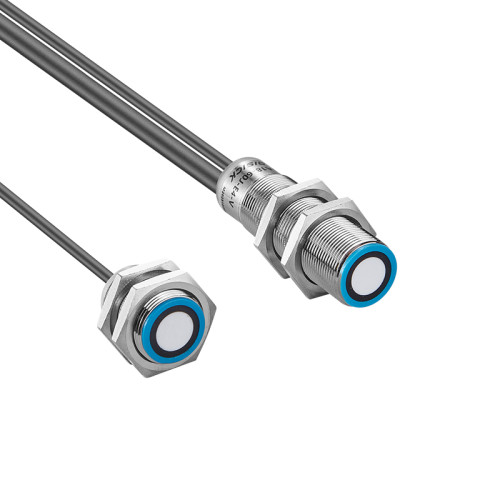

The CSDA series ultrasonic sensors excel in non-contact detection for industrial automation, particularly in single and double sheet detection. They feature a detection range of 20-40mm to 20-100mm with a ±45° maximum allowable angle deviation. These sensors offer 3 switching outputs (NPN/PNP, NO/NC) and have a response delay of just 4 to 10ms. Built for harsh conditions, they come with IP67 protection and operate between -25°C and +70°C. Ideal for applications like packaging, label positioning, and material thickness control, they ensure precise detection and help prevent material waste.

The CSB18 Vertical series ultrasonic sensors are advanced non-contact detection devices, ideal for industrial automation. They feature detection ranges from 30-300mm up to 60-1000mm with resolutions of 0.1mm to 0.17mm. These sensors offer excellent repeatability within ±0.15% and operate between -25°C and +70°C, ensuring reliable performance in harsh environments. With response times as fast as 22ms and IP67 protection, they are perfect for applications like liquid level control, material handling, and robotic arm positioning. Available in switch, analog, and digital output modes, these sensors provide flexible solutions for various industrial needs.

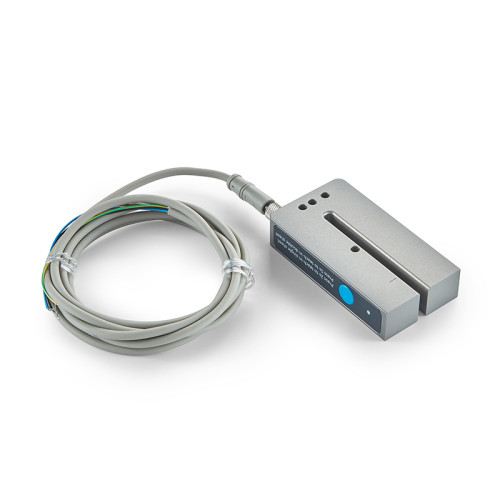

The CSDB series ultrasonic sensors are specialized for label detection in industrial settings. They feature a slot design that can recognize transparent, opaque, and printed labels with a minimum detectable object size of 5mm and a label spacing of 2mm. These sensors offer a fast response time of 250μs and provide PNP + NPN switch outputs. They are equipped with an LED indicator and a switch button on the housing top, making operation intuitive. The CSDB series supports synchronization and learning functions for easy setup and ensures reliable performance with a switching frequency of 1.2kHz. Boasting IP67 protection, they operate within -25°C to +70°C, making them suitable for harsh environments. Their compact size and high precision are ideal for applications requiring accurate label detection.

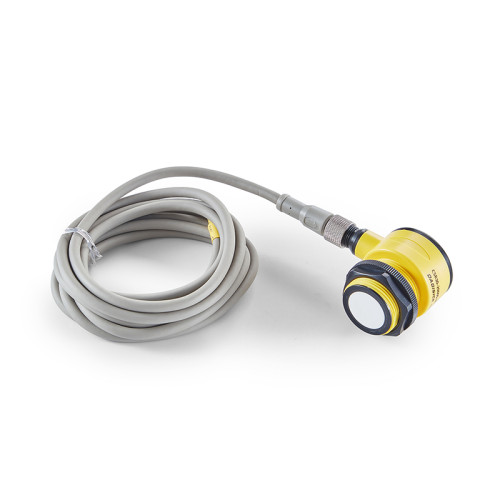

The CSR30 series ultrasonic sensors are advanced, non-contact detection devices designed for industrial automation. They feature a detection range of 100-2000mm to 150-3000mm with a resolution of 0.17mm. These sensors offer excellent repeatability within ±0.15% and operate between -25°C and +70°C, ensuring reliable performance in harsh environments. With response times as fast as 82ms and IP67 protection, they are ideal for applications like liquid level control, material handling, and robotic arm positioning. Available in switch, analog, and digital output modes, these sensors provide flexible solutions for various industrial needs.
