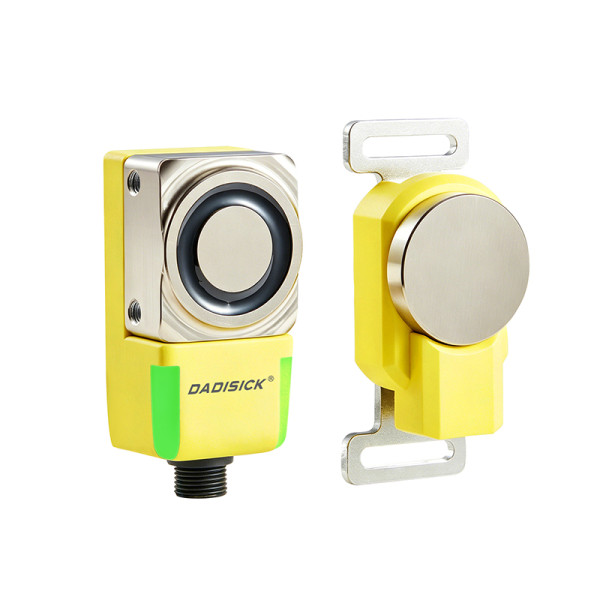

Non-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 series
Non-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 seriesNon-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 seriesNon-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 seriesNon-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 seriesNon-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 series

Non-contact Safety Switch Electromagnetic Force Strong Locking DK-OX-D51 series

Share
CategoriesElectromagnetic Safety Switch DK-OX-D51 series
BrandDADISICK
ModelDK-OX-D51
Safety Output：Dual-channel Output
Output Modes：Dual NPN / PNP Output
Locking Methods：Electromagnetic locking / Mechanical unlocking
Retaining Force When Locked：500N
Power Supply Voltage：24V DC
Response Time：30ms
Power Consumption：3.2W
Contact Now
Favorites
Detail Information
TECHNICAL DATA
Model
Description
OX-D51-S-SP
RFID magnetic security door lock kit, flat mounting, 2xPNP security outputs, universal coding sensor
OX-D51-S-SN
RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, universal coding sensor
OX-D51-D-SP
RFID magnetic security door lock body, flat mounting, 2xPNP security outputs, independent coding sensor
OX-D51-D-SN
RFID magnetic security door lock body, flat mounting, 2xNPN security outputs, independent coding sensor
Standard Parameters
Retaining force when locked
500N
Retaining force when unlocked
<20N
Working Distance
Sa0 (OFF->ON)
0.1mm
Sar (ON->OFF)
15mm
Response Time (ms)
Lock Unlock -- Lock
30 ms
Lock -- Lock Unlock
<300 ms
Control Output (OSSD Output)
Output method
Transistor output x 2
Maximum load current
200mA
AUX Output (Non-Safety Output)
Output method
Transistor output
Maximum load current
50mA
External Input
Security Input
Approximately 2mA x 2
Lock Control Input
Approximately 2mA
AUX Input
Approximately 2mA
Power supply
Power supply voltage
24V DC
Voltage tolerance
+15%/-20%
Power consumption
3.2W
Protection circuit
Power reverse connection protection, output short circuit protection, output surge protection, output reverse connection protection
Environmental resistance
Operating ambient temperature
-20 to 55°C (non-freezing)
Storage ambient temperature
-25 to 70°C (non-freezing)
Operating ambient humidity
5% to 95%RH
Storage ambient humidity
5% to 95%RH
Vibration resistance
10 to 55Hz, dual amplitude 2.0mm, 5 minutes in each of the X, Y, and Z directions (IEC60947-5-3)
Shock resistance
30G, 6 times in each of the X, Y, and Z directions
Material
Sensor body
PBT, PET/PAR, TPC, PC, plated steel
Induction element
PBT, SUS304, nickel-plated steel
Mounting bracket
Aluminum, coated steel (screws: steel)
Weight
Sensor body
240g
Induction element
130g

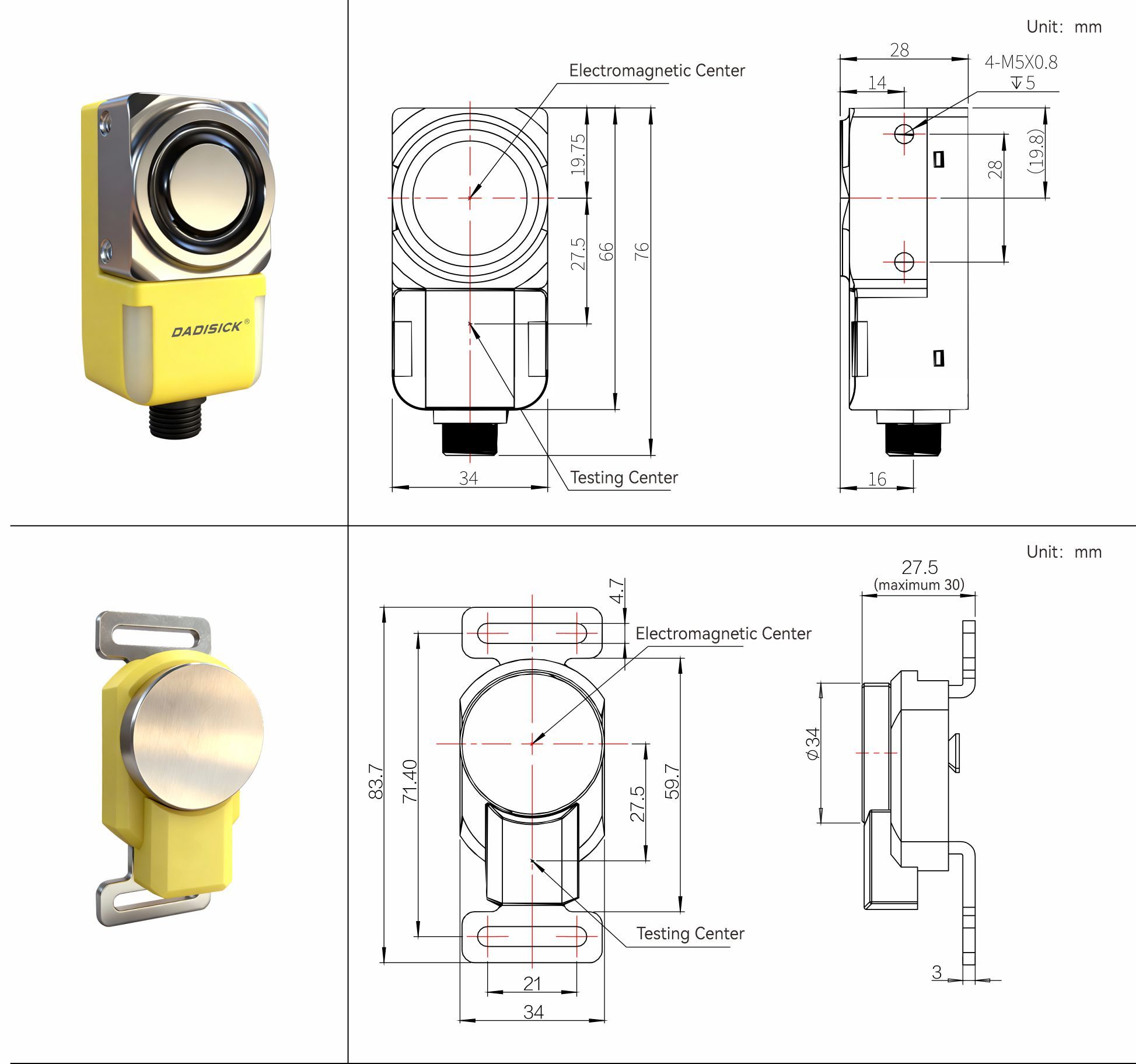

Safety switch lock body dimension drawing
Safety switch lock body dimension drawing

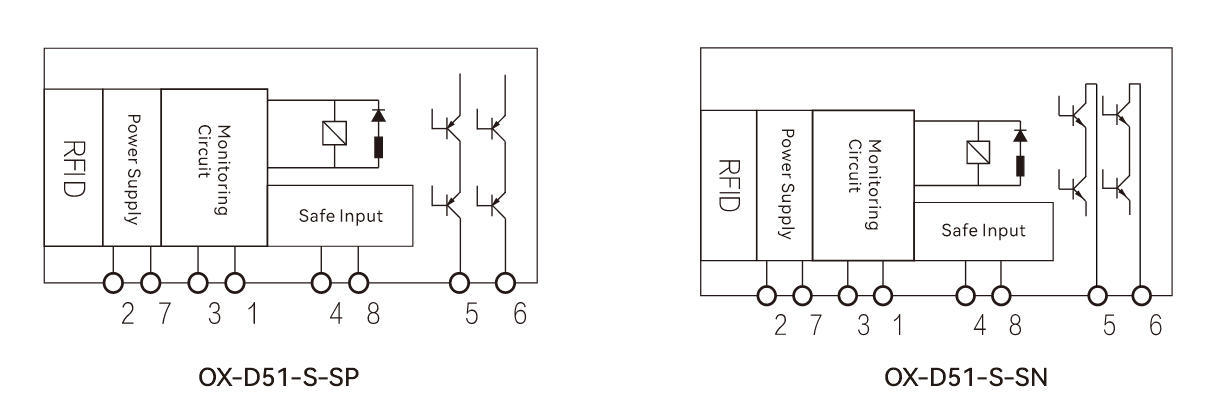

System module diagram
System module diagram
 DOWNLOADS
DK-OX-D51 Series Electromagneticl Safety Switch Data Sheet
