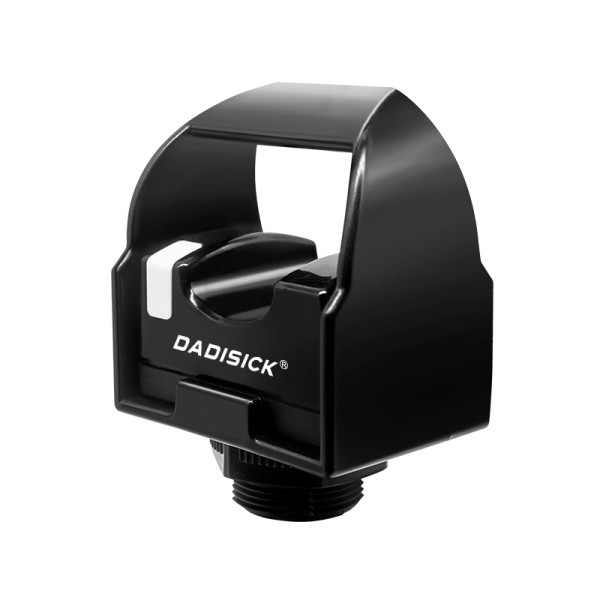

Self-checking Optical Touch Button Non-contact Optical Switch DK-THS Series
Self-checking Optical Touch Button Non-contact Optical Switch DK-THS SeriesSelf-checking Optical Touch Button Non-contact Optical Switch DK-THS SeriesSelf-checking Optical Touch Button Non-contact Optical Switch DK-THS SeriesSelf-checking Optical Touch Button Non-contact Optical Switch DK-THS SeriesSelf-checking Optical Touch Button Non-contact Optical Switch DK-THS Series

Self-checking Optical Touch Button Non-contact Optical Switch DK-THS Series

Share
CategoriesOptical Touch Button
BrandDADISICK
ModelDK-THSVN6 | DK-THSVP6
Output Conguration:1 NO and 1 NC
Response time:20ms
Power Supply Voltage:10-30V DC
Indicator Light:Two LED
Ambient Temperature:0°C ~+50°C
Contact Now
Favorites
Detail Information
Technical Data

Application Cases

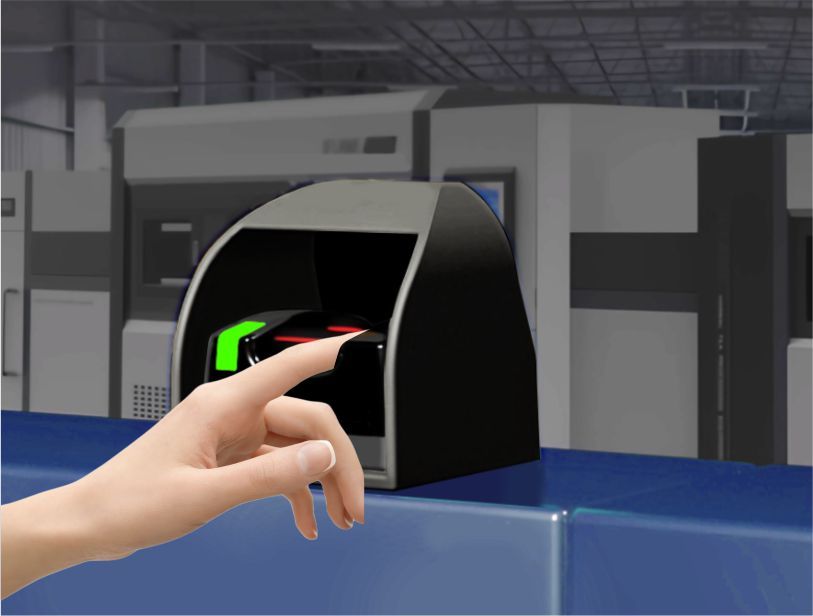

Self-checking Optical Touch Button

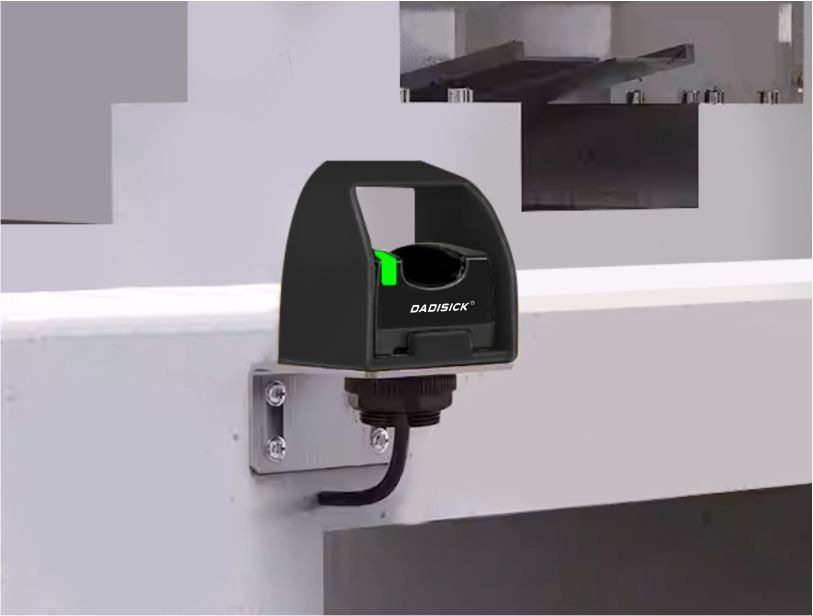

Non-contact Optical Switch

Product Parameters

Model
DK-THSVN6
DK-THSVP6
Type
NPN
PNP
Output Configuration
Complementary (SPDT) NPN (notch filter) open collector transistor; 1NO and 1NC transistor.
Power Supply Voltage
10-30V DC
Rated Output
Maximum load: 150mA On-state saturation voltage: < 15V@full load Off-state leakage current: <1 μA
Output Protection
Overload and short-circuit protection
Response Time
20ms
Indicator Light
Two LED indicators for power-on and output status
Environmental Rating
IP66
Light Interference Immunity
100000Lux
Housing Material
Main housing material: thermoplastic polysulfone; electronic components: epoxy resin encapsulation
Ambient Temperature
0°C~+50°C (+32°~+122°F)
Relative Humidity
Maximum operating relative humidity at 50°C: non-condensing (%) 90%
Features
Hazardous area number: silent; Features: Chemical resistance: No; Quick disconnect: No;
Connection Method
Standard 2m cable (customizable length available)

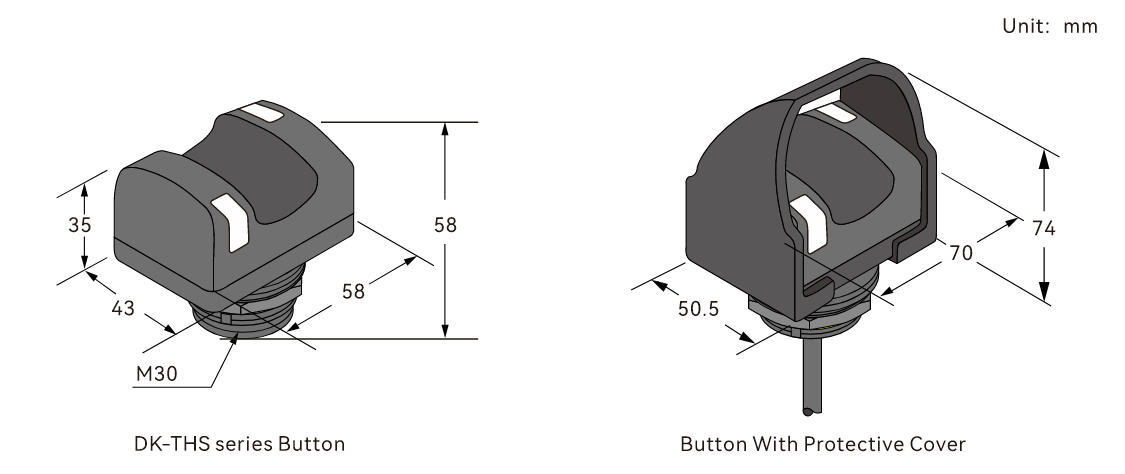

Dimensions  (unit: mm)

Non-contact Optical Switch Dimensions

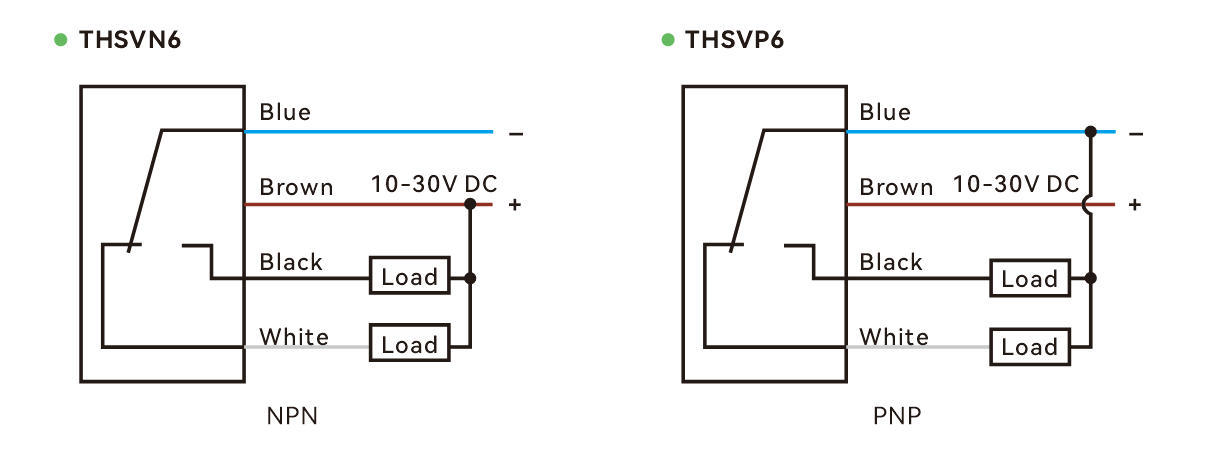

Self-checking Optical Touch Button Wiring method

Self-checking Optical Touch Button Wiring method
