Photoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-V
Photoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-VPhotoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-VPhotoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-VPhotoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-VPhotoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-V

Photoelectric Sensor Ultra-thin Micro BK-GP13 Series | BK-GP13-L50N-ZBA-V

Share
CategoriesDK-GP13 Series
BrandDADISICK
ModelBK-GP13-L50N-ZBA-V
Detection distance：500mm
Response time:1ms or less (action/reset)
Power supply voltage:12~24V DC ±10%
Operating temperature:-25~+55℃
Detection object:Ф2mm opaque object
Protection structure:IP64
Contact Now
Add to Wishlist
Detail Information
Photoelectric Sensors Technical Data
Dimensional Drawings/Wiring Diagrams
Downloads
Detection method
Through reflection
Side detection
Model
NPN Type
BK-GP13-L50N-ZBA-V
Detection distance
500 mm
Detection object
Ф2mm opaque object
Dysfunction
/
Response time
1ms or less (action/reset)
Light-emitting element
Red LED
Power supply voltage
12~24V DC ±10%
Current consumption
25mA or less
Indicator light
Output indicator: red, stability indicator: green
Protection circuit
Reverse connection protection, short circuit protection
Protection structure
IP64
Ambient illumination
Incandescent lamp: 3000lx or less, sunlight: 10000Ix or less
Ambient temperature
-25~+55℃
Ambient humidity
35~85%RH
Vibration resistance
Frequency 10~500Hz, double amplitude 3mm (MAX: 20G), 2 hours each in X, Y and Z directions
Impact resistance
Acceleration 500m/s² (about 50G), 3 times each in X, Y and Z directions
Connection method
Wire lead type (2m）
Casing
Casing: ABS

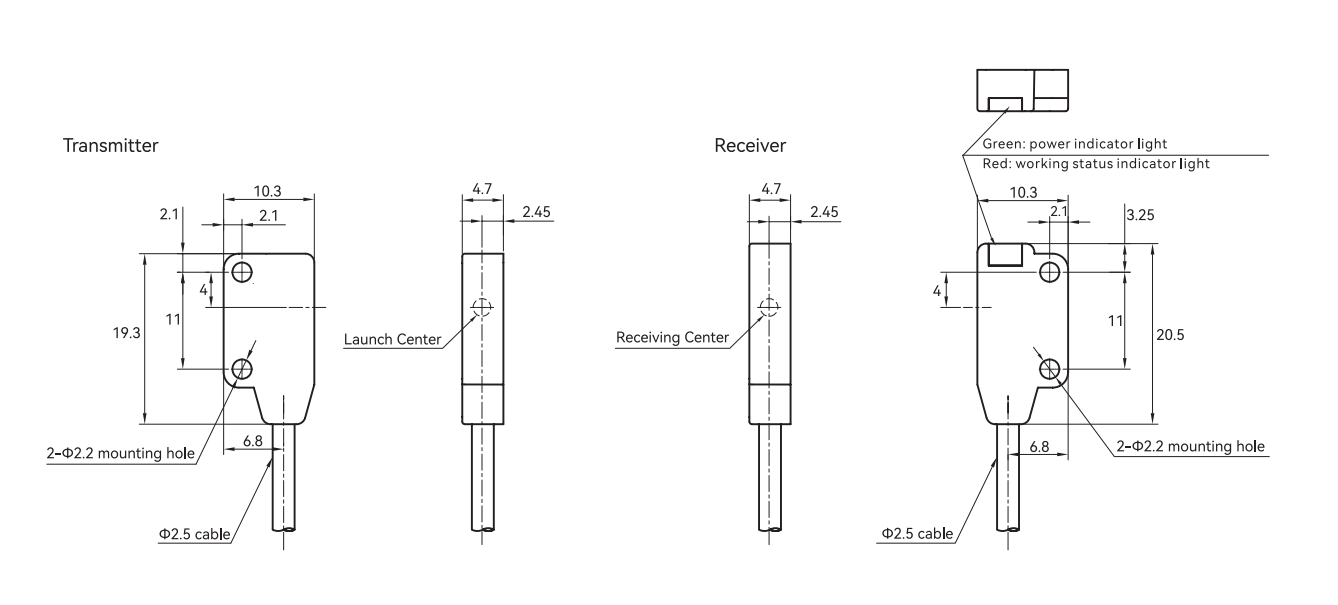

Dimensions  (unit: mm)

Dimensions of the Ultra-Thin Miniature Photoelectric Sensor BK-GP13 Series
Photoelectric Sensor Ultra-thin Micro Through-Beam BK-GP13 Series
 Wiring method

Photoelectric Sensor Ultra-thin Micro Through-Beam BK-GP13 Series Wiring method
