Laser displacement sensor is a high-precision non-contact distance sensor, commonly used in industrial automation and scientific research to measure parameters such as distance, positioning, displacement and dimensional thickness.
DADISICK laser displacement sensor uses advanced laser technology to accurately measure position, displacement and other dimensional geometric parameters. It is widely used in positioning measurement, thickness detection, position difference analysis and distance control. It is indispensable in industries such as automotive manufacturing, 3D printing and circuit welding processing. Key parameters such as measurement range, resolution and linear accuracy are factors that need to be considered when selecting a sensor. DADISICK provides high-quality sensors that meet the stringent requirements of industrial environments and help improve production efficiency and product quality.
Laser Displacement Sensor Features

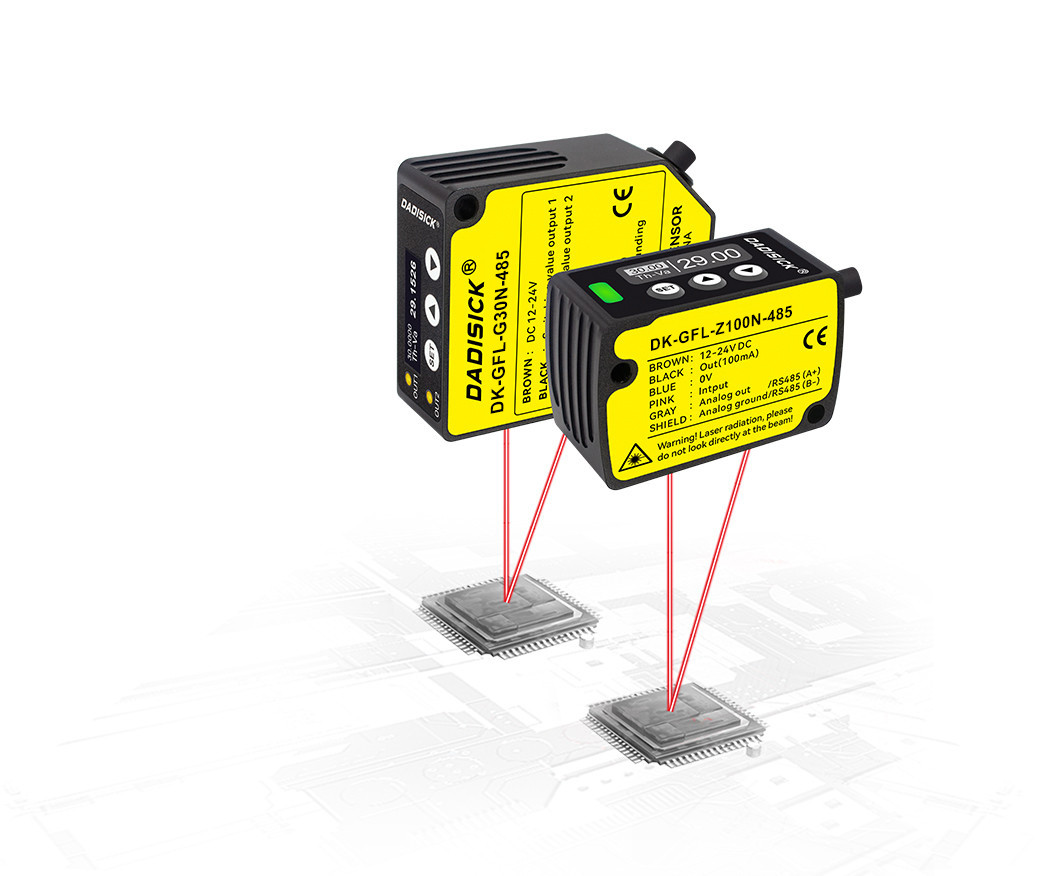

Laser Displacement Sensor – High-Precision, Non-Contact
Our laser displacement sensors at DADISICK provide non-contact, high-accuracy (as low as 2 µm) distance and displacement measurement, suitable for demanding industrial and research applications. Available series include DK-GFL-G (high precision & speed) and DK-GFL-Z (extended range), with outputs like analog, RS485, NPN/PNP. Used widely in automotive manufacturing, electronics assembly, 3D printing, and more.
Fast Response
The DK-GFL-Z series laser displacement sensor is known for its fast response time, which is adjustable between 1.5ms, 5ms, and 10ms. This rapid response capability allows the sensor to quickly capture changes in distance, making it suitable for dynamic measurements and real-time monitoring. Whether you're working on high-speed production lines or need quick feedback for process control, the DK-GFL-Z series can keep up with your demands. Its fast response time ensures that you get the most up-to-date information, allowing for timely adjustments and improved productivity.
Multifunctionality
Both the DK-GFL-G and DK-GFL-Z series laser displacement sensors offer a high degree of multifunctionality, supporting various output modes including NPN/PNP, analog, and RS485. This flexibility allows the sensors to be easily integrated into different industrial control systems, making them versatile solutions for a wide range of applications. Whether you need simple switch outputs or complex communication protocols, our sensors can adapt to your specific requirements. The multifunctionality of our laser displacement sensors ensures that they can fit seamlessly into your existing setup, providing a convenient and efficient measurement solution.

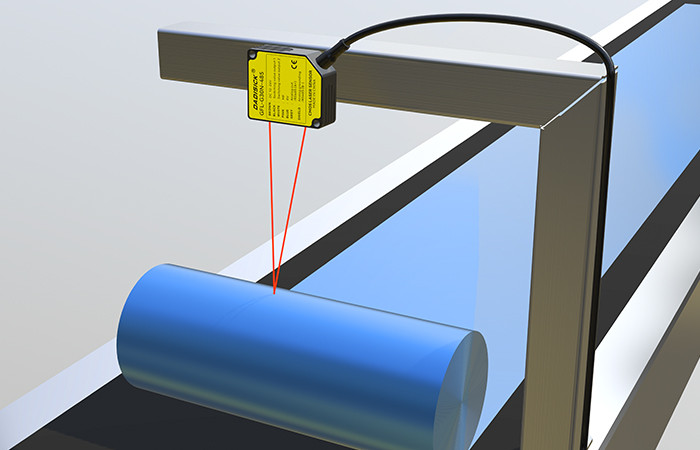

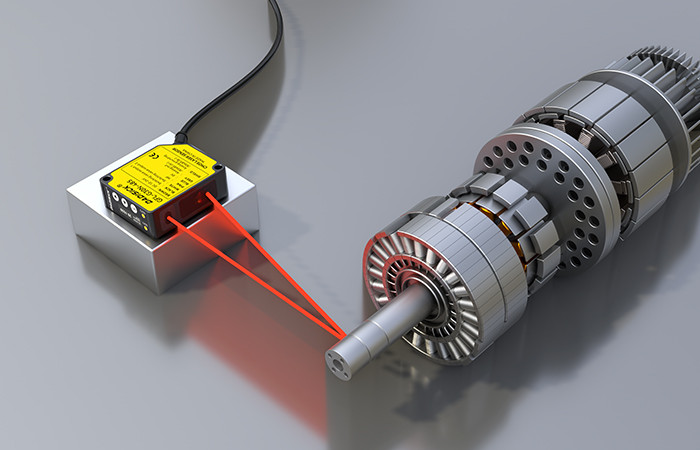

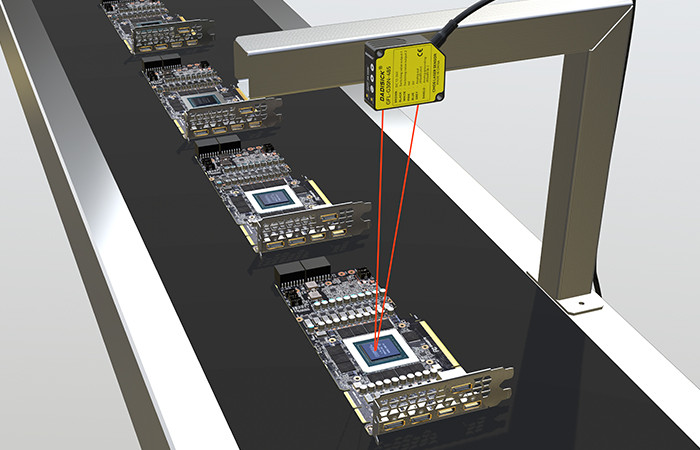

Laser Displacement Sensor Applications
Laser Displacement Sensors Products List
| Price level | Models | SensingDistance | Resolution | Output | |
| ★★★★✫ | 30mm(±4) | 2 µm | NPN / PNP
Analog
RS485 | ||
★★★★✫ | 30mm(±4) | 2 µm | |||
| ★★★★✫ | 50mm(±10) | 5 µm | |||
★★★★✫ | 50mm(±10) | 5 µm | |||
★★★★✫ | 85mm(±20) | 10 µm | |||
★★★★✫ | 85mm(±20) | 10 µm | |||
★★★★✫ | DK-GFL-G120PM
DK-GFL-G120P-485 | 120mm(±60) | 30 µm | ||
★★★★✫ | DK-GFL-G120NM
DK-GFL-G120N-485 | 120mm(±60) | 30 µm | ||
| ★★★★✫ | 250mm(±150) | 75 µm | |||
★★★★✫ | 250mm(±150) | 75 µm | |||
| Price level | Models | SensingDistance | Resolution | Output | |
| ★✫✫✫✫ | 30mm(±5) | 10µm | Analog / RS485 | ||
| ★✫✫✫✫ | DK-GFL-Z50NDK-GFL-Z50NMDK-GFL-Z50N-RS485 | 50mm(±15) | 30µm | NPN / Analog / RS485 | |
★✫✫✫✫ | DK-GFL-Z100NDK-GFL-Z100NMDK-GFL-Z100N-RS485 | 100mm(±35) | 70µm | ||
★✫✫✫✫ | DK-GFL-Z200NDK-GFL-Z200NMDK-GFL-Z200N-RS485 | 200mm(±80) | 200µm | ||
| ★✫✫✫✫ | DK-GFL-Z400NDK-GFL-Z400NMDK-GFL-Z400N-RS485 | 400mm(±200) | 400µm / 800µm | ||
Categories
Laser Displacement Sensor
DADISICK displacement sensor has extremely high measurement accuracy, can meet the needs of precision measurement, fast measurement speed, and real-time feedback of measurement results. It can be used for dimensional measurement, position identification of tiny parts, monitoring of parts on conveyor belts, detection of material thickness and surface roughness, etc. DADISICK displacement sensor is divided into two types: contact and non-contact.
| Image | Laser Displacement Sensor | Model | Description |
|---|---|---|---|
![]() | Laser displacement sensor | COMS Distance Sensor | DADISICK | DK-GFL-Z series | Response time: up to 1.5ms Repetitive accuracy: up to 10µm |
![]() | Laser displacement | Laser Distance Sensors | DADISICK | DK-GFL-G Series | Response time: up to 1.0ms Repetitive accuracy: up to 2µm |
![]() | DK-GFL-G250P-485 | Laser Displacement Sensors | DADISICK | DK-GFL-G Series | DK-GFL-G250P-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 250mm Detection range (f. s.): ±150mm |
![]() | DK-GFL-G85P-485 | Laser Ranging Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G85P-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 85mm Detection range (f. s.): ±20mm |
![]() | DK-GFL-G50P-485 | Measurement Distance Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G50P-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 50mm Detection range (f. s.): ±10mm |
![]() | DK-GFL-G30P-485 | Industrial Laser Distance Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G30P-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 30mm Detection range (f. s.): ±4mm |
![]() | DK-GFL-G250N-485 | Laser Displacement Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G250N-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 250mm Detection range (f. s.): ±150mm |
![]() | DK-GFL-G85N-485 | Laser Proximity Sensors | DADISICK | DK-GFL-G Series | DK-GFL-G85N-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 85mm Detection range (f. s.): ±20mm |
![]() | DK-GFL-G50N-485 | Laser Distance Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G50N-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 50mm Detection range (f. s.): ±10mm |
![]() | DK-GFL-G30N-485 | Laser Proximity Sensors | DADISICK | DK-GFL-G Series | DK-GFL-G30N-485 | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 30mm Detection range (f. s.): ±4mm |
![]() | DK-GFL-G250PM | Precision Laser Distance Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G250PM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 250mm Detection range (f. s.): ±150mm |
![]() | DK-GFL-G85PM | Laser Distance Measurement Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G85PM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 85mm Detection range (f. s.): ±20mm |
![]() | DK-GFL-G50PM | Distance Detection Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G50PM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 50mm Detection range (f. s.): ±10mm |
![]() | DK-GFL-G30PM | Measurement Distance Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G30PM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 30mm Detection range (f. s.): ±4mm |
![]() | DK-GFL-G250NM | Laser Sensor for Object Detection | DADISICK | DK-GFL-G Series | DK-GFL-G250NM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 250mm Detection range (f. s.): ±150mm |
![]() | DK-GFL-G85NM | Laser Ranging Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G85NM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 85mm Detection range (f. s.): ±20mm |
![]() | DK-GFL-G50NM | Laser Displacement Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G50NM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 50mm Detection range (f. s.): ±10mm |
![]() | DK-GFL-G30NM | Laser Depth Sensor | DADISICK | DK-GFL-G Series | DK-GFL-G30NM | Response time: up to 1.0ms Repetitive accuracy: up to 2µm Detection distance: 30mm Detection range (f. s.): ±4mm |
![]() | DK-GFL-Z400N-RS485 | Laser Beam Sensor | DADISICK | DK-GFL-Z series | DK-GFL-Z400N-RS485 | Response time: up to 1.5ms Output type: RS485 Measuring center distance: 400mm Measuring range: ±200mm |
![]() | DK-GFL-Z400NM | Laser Ranging Sensor | DADISICK | DK-GFL-Z series | DK-GFL-Z400NM | Response time: up to 1.5ms Output type: analog Measuring center distance: 400mm Measuring range: ±200mm |
Laser Distance Displacement Sensor FAQ
1. Do you offer OEM services for industrial laser displacement sensors?
Yes, we provide comprehensive OEM services, including customizable product options and laser marking. Our team collaborates closely with clients to deliver tailored solutions to meet their specific requirements.
2. How does your product's interchangeability compare with competitors?
Our industrial laser displacement sensors boast exceptional interchangeability with competitor products. This ensures seamless integration and compatibility with existing systems, minimizing downtime and ensuring continuity of operations.
3. What customization options are available for your industrial laser displacement sensors?
Our industrial laser displacement sensors offer a wide range of customization options, including different sensing ranges, output types, and communication protocols. We prioritize flexibility to meet the unique needs of our customers.
4. How do you ensure the quality and reliability of your industrial laser displacement sensors?
Quality is paramount to us. We adhere to stringent quality control measures throughout the manufacturing process and subject our industrial laser displacement sensors to rigorous testing to ensure they meet industry standards and deliver consistent performance.
5. Can your industrial laser displacement sensors be seamlessly integrated into existing systems?
Absolutely! Our industrial laser displacement sensors are designed for seamless integration with various industrial systems. We provide comprehensive documentation and technical support to facilitate smooth installation and operation.
6. What sets your industrial laser displacement sensors apart from competitors?
Our industrial laser displacement sensors stand out for their advanced technology, exceptional performance, and reliability. They are engineered to meet the diverse needs of industrial applications, delivering precise and accurate results consistently.
